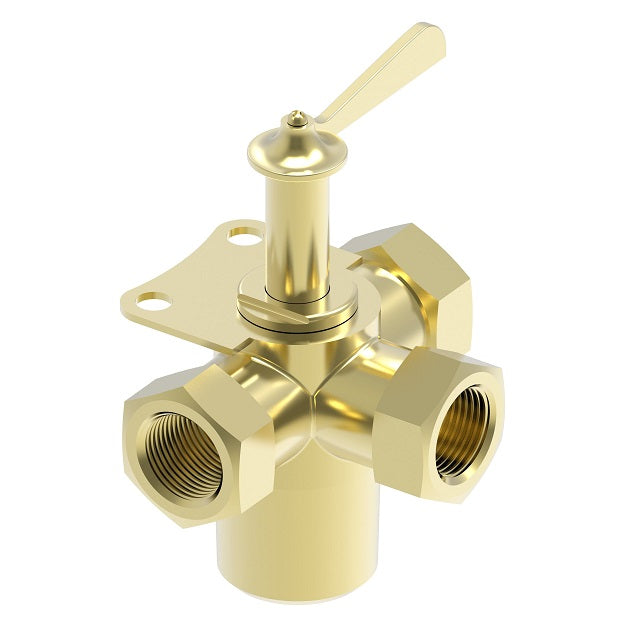

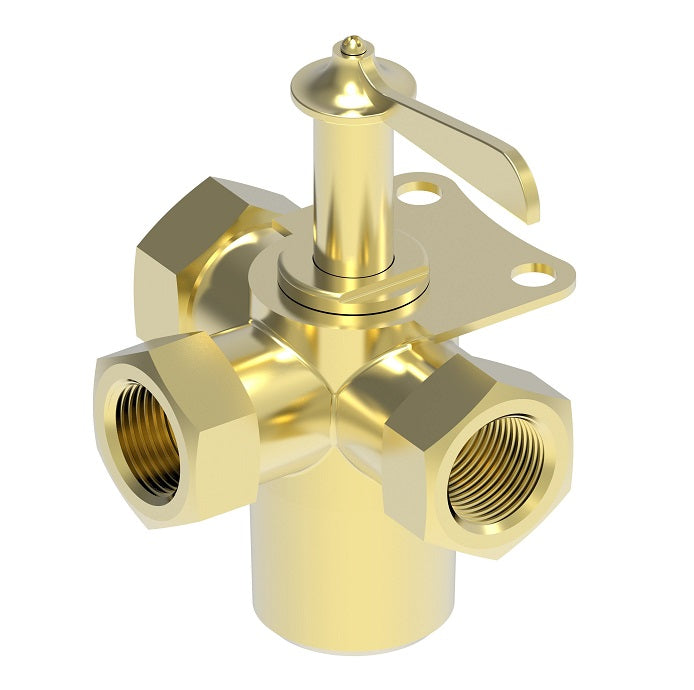

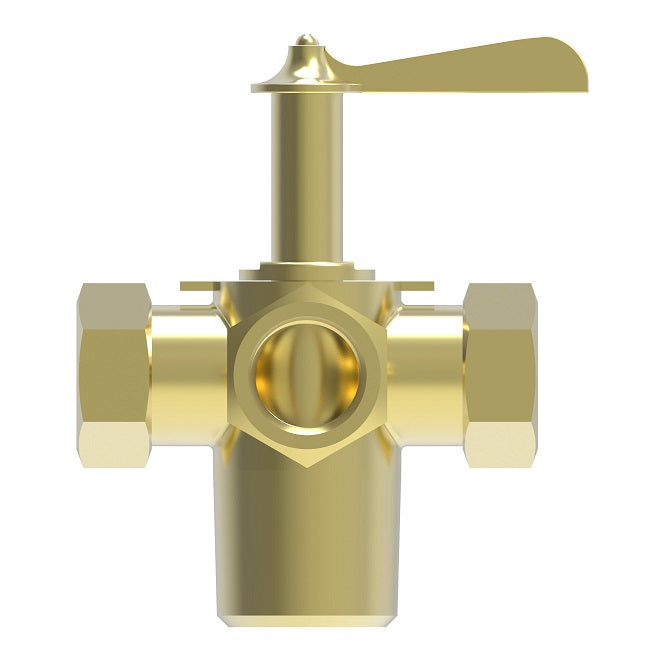

6749 by Danfoss | 3 Way Multiple Shut-Off | 1/4" Female NPTF x 1/4" Female NPTF x 1/4" Female NPTF | Brass

6749 by Danfoss | 3 Way Multiple Shut-Off | 1/4" Female NPTF x 1/4" Female NPTF x 1/4" Female NPTF | Brass

Name: 6749 by Danfoss | 3 Way Multiple Shut-Off | 1/4" Female NPTF x 1/4" Female NPTF x 1/4" Female NPTF | Brass
Brand: Danfoss/Eaton
SKU: 6749 Danfoss
Price: 65.78 USD
Availability: InStock

$65.78 - $65.78

$65.78

$65.78 - $65.78

$65.78

Aeroquip® by Danfoss
3 Way Multiple Shut-Off

Quantity

Specifications for Variant SKU: 6749 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female NPTF, 1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s):	Brass

Applications:
Designed for automotive or industrial use.
Used With:
Copper, aluminum, steel and plastic tubing where applicable.
Material:
Brass bodies and handles.
Pressure:
30 psi working pressure, except where noted.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with metal tubing. For use with plastic tubing, refer to the tubing temperature range.
Conformance:
Not intended for natural gas, LPG, nuclear or aircraft applications, except as noted.
Note:
Ground Plug Drains and Shut-Offs use a universal lubricant satisfactory for use with most common fluids. However the lubricant may wash out at higher pressures or with some exotic fluids.


Brass Part Number	Female Pipe Thread	Stem L
6749	1/4"	1.37"
6709	3/8"	1.37"
