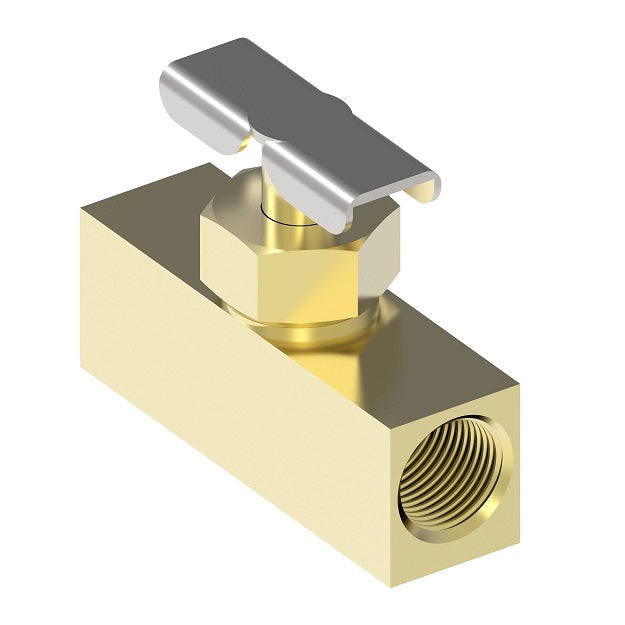

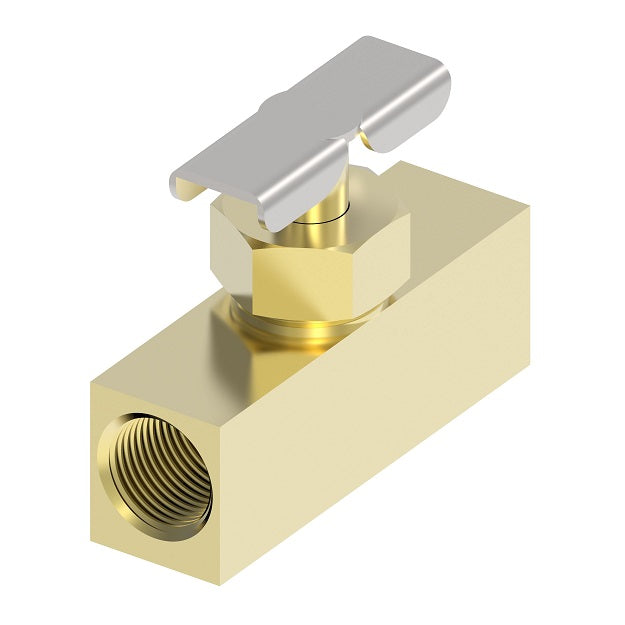

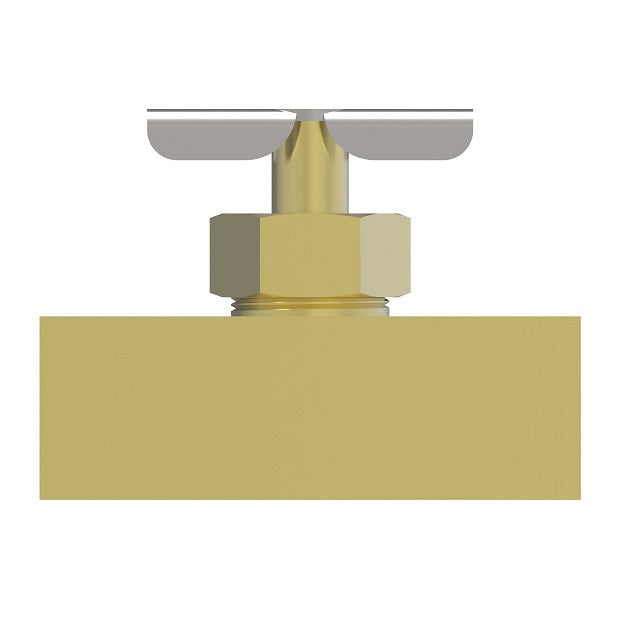

6800 by Danfoss | Needle Valve | Double Female Pipe | 1/8" Female NPTF x 1/8" Female NPTF | Brass
6800 by Danfoss | Needle Valve | Double Female Pipe | 1/8" Female NPTF x 1/8" Female NPTF | Brass
6800 by Danfoss | Needle Valve | Double Female Pipe | 1/8" Female NPTF x 1/8" Female NPTF | Brass
6800 by Danfoss | Needle Valve | Double Female Pipe | 1/8" Female NPTF x 1/8" Female NPTF | Brass

6800 by Danfoss | Needle Valve | Double Female Pipe | 1/8" Female NPTF x 1/8" Female NPTF | Brass

$38.86 - $38.86
$38.86
$38.86 - $38.86
$38.86

Aeroquip® by Danfoss
Needle Valve - Double Female Pipe
Specifications for Variant SKU: 6800 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/8in Female NPTF, 1/8in Female NPTF, Some Ends Match
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Metal-to-metal seat, with fine thread screw down, enables valves to seat positively, adjust easily and hold to any amount of flow up to capacity of the valve.
Used With:
  • Copper, aluminum, steel and plastic tubing where applicable.
Material:
  • Brass bodies, steel handles except where noted.
  • Polyline valves have brass bodies and brass handles.
Pressure:
  • 150 psi maximum. (Does not include plastic tubing.)
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • For valves using compatible tubing, refer to the tubing temperature range.
Conformance:
  • Designed for automotive and industrial use.
  • Not intended for natural gas, LPG, nuclear or aircraft applications.
Assembly Instructions:
  • Install with the pressure against the seat. Inspection of a straight valve discloses one opening to be higher than the other. Pressure should always be directed against the seat in angle valves, not the stem threads.
Brass
Part Number 		Female Pipe
Thread		 L M M1 G
6800 1/8" 1.14" 0.88" 1.03" 0.50"
6805 1/4" 1.62" 1.11" 1.26" 0.68"

"S" suffix designates Selfalign with nuts and sleeves.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
