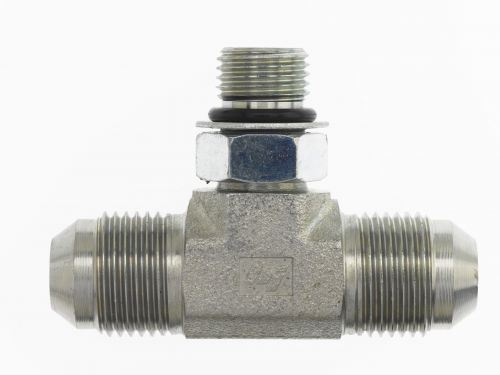

6803-10-10-08-NWO-FG by Brennan Inc. | -10 Male JIC x -10 Male JIC x -08 Male Adjustable O-Ring Boss Branch | Tee | Forged Steel

6803-10-10-08-NWO-FG by Brennan Inc. | -10 Male JIC x -10 Male JIC x -08 Male Adjustable O-Ring Boss Branch | Tee | Forged Steel

$14.18 - $14.18
$14.18
$17.99
$17.99 - $17.99
$17.99

Brennan Inc.
Tube Fittings & Adapters: 6803-NWO - Male JIC x Male JIC x Male Adjustable O-Ring Boss Branch Tee
Specifications for Variant SKU: 6803-10-10-08-NWO-FG Brennan
Shape (Orientation): Tee
Ends Configuration: 5/8in Male JIC, 5/8in Male JIC, 1/2in Male O-Ring Boss, Some Ends Match
Material(s): Steel
Part Number Material Tube O.D. B1 SAE37° B2 SAE37° B3 SAEORB B1 Drill B2 Drill B3 Drill M1 Length M2 Length M7 Length C Hex Y Flats
6803-04-04-04-NWO-FG Forged Steel 1/4" 7/16-20" 7/16-20" 7/16-20" 0.172" 0.172" 0.172" 0.890" 0.890" 1.030" 0.563" 0.438"
6803-04-04-06-NWO-FG Forged Steel 1/4" 7/16-20" 7/16-20" 9/16-18" 0.172" 0.172" 0.297" 1.050" 1.050" 1.250" 0.688" 0.562"
6803-05-05-05-NWO-FG Forged Steel 5/16" 1/2-20" 1/2-20" 1/2-20" 0.234" 0.234" 0.234" 0.950" 0.950" 1.130" 0.625" 0.562"
6803-06-06-04-NWO-FG Forged Steel 3/8" 9/16-18" 9/16-18" 7/16-20" 0.297" 0.297" 0.172" 1.060" 1.060" 1.190" 0.563" 0.562"
6803-06-06-06-NWO-FG Forged Steel 3/8" 9/16-18" 9/16-18" 9/16-18" 0.297" 0.297" 0.297" 1.060" 1.060" 1.250" 0.688" 0.562"
6803-06-06-08-NWO-FG Forged Steel 3/8" 9/16-18" 9/16-18" 3/4-16" 0.297" 0.297" 0.391" 1.140" 1.140" 1.450" 0.875" 0.750"
6803-08-06-08-NWO-FG Forged Steel - - - - - - - - - - - -
6803-08-08-06-NWO-FG Forged Steel 1/2" 3/4-16" 3/4-16" 9/16-18" 0.391" 0.391" 0.297" 1.250" 1.250" 1.320" 0.688" 0.750"
6803-08-08-08-NWO-FG Forged Steel 1/2" 3/4-16" 3/4-16" 3/4-16" 0.391" 0.391" 0.391" 1.250" 1.250" 1.450" 0.875" 0.750"
6803-08-08-10-NWO-FG Forged Steel 1/2" 3/4-16" 3/4-16" 7/8-14" 0.391" 0.391" 0.484" 1.330" 1.330" 1.700" 1.000" 0.875"
6803-08-08-12-NWO-FG Forged Steel 1/2" 3/4-16" 3/4-16" 1-1/16-12" 0.391" 0.391" 0.609" 1.420" 1.420" 1.940" 1.250" 1.062"
6803-10-10-08-NWO-FG Forged Steel 5/8" 7/8-14" 7/8-14" 3/4-16" 0.484" 0.484" 0.391" 1.450" 1.450" 1.540" 0.875" 0.875"
6803-10-10-10-NWO-FG Forged Steel 5/8" 7/8-14" 7/8-14" 7/8-14" 0.484" 0.484" 0.484" 1.450" 1.450" 1.700" 1.000" 0.875"
6803-10-10-12-NWO-FG Forged Steel 5/8" 7/8-14" 7/8-14" 1-1/16-12" 0.484" 0.484" 0.609" 1.540" 1.540" 1.940" 1.250" 1.062"
6803-10-10-16-NWO-FG Forged Steel 5/8" 7/8-14" 7/8-14" 1-5/16-12" 0.484" 0.484" 0.844" 1.640" 1.640" 2.050" 1.500" 1.312"
6803-12-12-08-NWO-FG Forged Steel 3/4" 1-1/16-12" 1-1/16-12" 3/4-16" 0.609" 0.609" 0.391" 1.660" 1.660" 1.620" 0.875" 1.062"
6803-12-12-10-NWO-FG Forged Steel 3/4" 1-1/16-12" 1-1/16-12" 7/8-14" 0.609" 0.609" 0.484" 1.660" 1.660" 1.780" 1.000" 1.062"
6803-12-12-12-NWO-FG Forged Steel 3/4" 1-1/16-12" 1-1/16-12" 1-1/16-12" 0.609" 0.609" 0.609" 1.660" 1.660" 1.940" 1.250" 1.062"
6803-12-12-16-NWO-FG Forged Steel 3/4" 1-1/16-12" 1-1/16-12" 1-5/16-12" 0.609" 0.609" 0.844" 1.760" 1.760" 2.050" 1.500" 1.312"
6803-14-14-14-NWO-FG Forged Steel 7/8" 1-3/16-12" 1-3/16-12" 1-3/16-12" 0.719" 0.719" 0.719" 1.800" 1.800" 2.000" 1.375" 1.312"
6803-16-12-16-NWO-FG Forged Steel 1" 1-5/16-12" 1-1/16-12" 1-5/16-12" 0.844" 0.609" 0.844" 1.810" 1.760" 2.050" 1.500" 1.312"
6803-16-16-12-NWO-FG Forged Steel 1" 1-5/16-12" 1-5/16-12" 1-1/16-12" 0.844" 0.844" 0.609" 1.810" 1.810" 2.050" 1.250" 1.312"
6803-16-16-16-NWO-FG Forged Steel 1" 1-5/16-12" 1-5/16-12" 1-5/16-12" 0.844" 0.844" 0.844" 1.810" 1.810" 2.050" 1.500" 1.312"
6803-20-20-20-NWO-FG Forged Steel 1-1/4" 1-5/8-12" 1-5/8-12" 1-5/8-12" 1.078" 1.078" 1.078" 2.060" 2.060" 2.250" 1.875" 1.625"
6803-24-20-24-NWO-FG Forged Steel - - - - - - - - - - - -
6803-24-24-24-NWO-FG Forged Steel 1-1/2" 1-7/8-12" 1-7/8-12" 1-7/8-12" 1.312" 1.312" 1.312" 2.330" 2.330" 2.390" 2.125" 1.875"
6803-32-32-32-NWO-FG Forged Steel 2" 2-1/2-12" 2-1/2-12" 2-1/2-12" 1.781" 1.781" 1.781" 3.060" 3.060" 2.890" 2.750" 2.500"

6803-03-03-03-NWO-SS Stainless Steel - - - - - - - - - - - -
6803-04-04-04-NWO-SS Stainless Steel 1/4" 7/16-20" 7/16-20" 7/16-20" 0.172" 0.172" 0.172" 0.890" 0.890" 1.030" 0.563" 0.438"
6803-06-06-06-NWO-SS Stainless Steel 3/8" 9/16-18" 9/16-18" 9/16-18" 0.297" 0.297" 0.297" 1.060" 1.060" 1.250" 0.688" 0.562"
6803-08-08-08-NWO-SS Stainless Steel 1/2" 3/4-16" 3/4-16" 3/4-16" 0.391" 0.391" 0.391" 1.250" 1.250" 1.450" 0.875" 0.750"
6803-12-12-12-NWO-SS Stainless Steel 3/4" 1-1/16-12" 1-1/16-12" 1-1/16-12" 0.609" 0.609" 0.609" 1.660" 1.660" 1.940" 1.250" 1.062"
6803-16-16-16-NWO-SS Stainless Steel 1" 1-5/16-12" 1-5/16-12" 1-5/16-12" 0.844" 0.844" 0.844" 1.810" 1.810" 2.050" 1.500" 1.312"
6803-20-20-20-NWO-SS Stainless Steel 1-1/4" 1-5/8-12" 1-5/8-12" 1-5/8-12" 1.078" 1.078" 1.078" 2.060" 2.060" 2.250" 1.875" 1.625"
6803-24-24-24-NWO-SS Stainless Steel 1-1/2" 1-7/8-12" 1-7/8-12" 1-7/8-12" 1.312" 1.312" 1.312" 2.330" 2.330" 2.390" 2.125" 1.875"

* Without O-Ring
