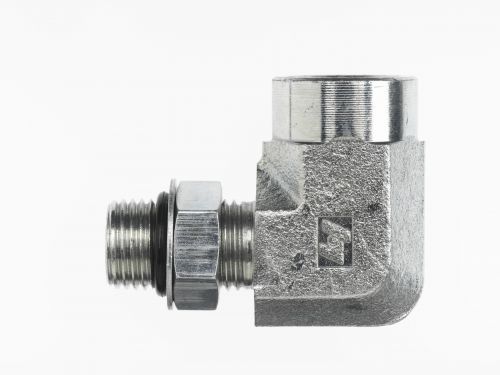

6805-24-24-NWO-FG by Brennan Inc. | -24 Male Adjustable O-Ring Boss x -24 Female Pipe | 90° Elbow | Forged Steel

6805-24-24-NWO-FG by Brennan Inc. | -24 Male Adjustable O-Ring Boss x -24 Female Pipe | 90° Elbow | Forged Steel

Save $54.24 Save $54.24
$135.60
$135.60 - $135.60
$135.60
$81.36
$81.36 - $81.36
$81.36

Brennan Inc.
Tube Fittings & Adapters: 6805-L-NWO - Male Adjustable O-Ring Boss x Female Pipe 90° Elbow
Specifications for Variant SKU: 6805-24-24-NWO-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Male O-Ring Boss, 1-1/2in Female NPTF
Material(s): Steel
Part Number Material Tube O.D. B SAE ORB A NPTF B Drill M7 Length N Length C Hex Y Flats
6805-04-02-NWO-FG Forged Steel 1/4" 7/16-20" 1/8-27" 0.172" 1.190" 0.660" 0.563" 0.562"
6805-04-04-NWO-FG Forged Steel 1/4" 7/16-20" 1/4-18" 0.172" 1.240" 0.880" 0.563" 0.750"
6805-05-02-NWO-FG Forged Steel 5/16" 1/2-20" 1/8-27" 0.234" 1.190" 0.660" 0.625" 0.562"
6805-06-04-NWO-FG Forged Steel 3/8" 9/16-18" 1/4-18" 0.297" 1.320" 0.880" 0.688" 0.750"
6805-06-06-NWO-FG Forged Steel 3/8" 9/16-18" 3/8-18" 0.297" 1.410" 1.020" 0.688" 0.875"
6805-08-06-NWO-FG Forged Steel 1/2" 3/4-16" 3/8-18" 0.391" 1.540" 1.020" 0.875" 0.875"
6805-08-08-NWO-FG Forged Steel 1/2" 3/4-16" 1/2-14" 0.391" 1.620" 1.230" 0.875" 1.062"
6805-10-06-NWO-FG Forged Steel 5/8" 7/8-14" 3/8-18" 0.484" 1.700" 1.020" 1.000" 0.875"
6805-10-08-NWO-FG Forged Steel 5/8" 7/8-14" 1/2-14" 0.484" 1.780" 1.230" 1.000" 1.062"
6805-12-08-NWO-FG Forged Steel 3/4" 1-1/16-12" 1/2-14" 0.609" 1.940" 1.230" 1.250" 1.062"
6805-12-12-NWO-FG Forged Steel 3/4" 1-1/16-12" 3/4-14" 0.609" 2.050" 1.100" 1.250" 1.312"
6805-12-16-NWO-FG Forged Steel 3/4" 1-1/16-12" 1-11-1/2" 0.609" 2.250" 1.620" 1.250" 1.625"
6805-14-12-NWO-FG Forged Steel 7/8" 1-3/16-12" 3/4-14" 0.719" 2.050" 1.360" 1.375" 1.312"
6805-16-12-NWO-FG Forged Steel 1" 1-5/16-12" 3/4-14" 0.844" 2.050" 1.360" 1.500" 1.312"
6805-16-16-NWO-FG Forged Steel 1" 1-5/16-12" 1-11-1/2" 0.844" 2.250" 1.620" 1.500" 1.625"
6805-20-20-NWO-FG Forged Steel 1-1/4" 1-5/8-12" 1-1/4-11-1/2" 1.078" 2.390" 1.700" 1.875" 1.875"
6805-24-24-NWO-FG Forged Steel 1-1/2" 1-7/8-12" 1-1/2-11-1/2" 1.312" 2.890" 2.080" 2.125" 2.562"
6805-32-32-NWO-FG Forged Steel 2" 2-1/2-12" 2-11-1/2" 1.781" 3.020" 2.390" 2.750" 2.812"

6805-04-04-NWO-SS Stainless Steel 1/4" 7/16-20" 1/4-18" 0.172" 1.240" 0.880" 0.563" 0.750"
6805-06-04-NWO-SS Stainless Steel 3/8" 9/16-18" 1/4-18" 0.297" 1.320" 0.880" 0.688" 0.750"
6805-06-06-NWO-SS Stainless Steel 3/8" 9/16-18" 3/8-18" 0.297" 1.410" 1.020" 0.688" 0.875"
6805-08-06-NWO-SS Stainless Steel 1/2" 3/4-16" 3/8-18" 0.391" 1.540" 1.020" 0.875" 0.875"
6805-08-08-NWO-SS Stainless Steel 1/2" 3/4-16" 1/2-14" 0.391" 1.620" 1.230" 0.875" 1.062"
6805-10-08-NWO-SS Stainless Steel 5/8" 7/8-14" 1/2-14" 0.484" 1.780" 1.230" 1.000" 1.062"
6805-12-06-NWO-SS Stainless Steel - - - - - - - -
6805-12-12-NWO-SS Stainless Steel 3/4" 1-1/16-12" 3/4-14" 0.609" 2.050" 1.100" 1.250" 1.312"
6805-16-16-NWO-SS Stainless Steel 1" 1-5/16-12" 1-11-1/2" 0.844" 2.250" 1.620" 1.500" 1.625"
6805-20-20-NWO-SS Stainless Steel 1-1/4" 1-5/8-12" 1-1/4-11-1/2" 1.078" 2.390" 1.700" 1.875" 1.875"
