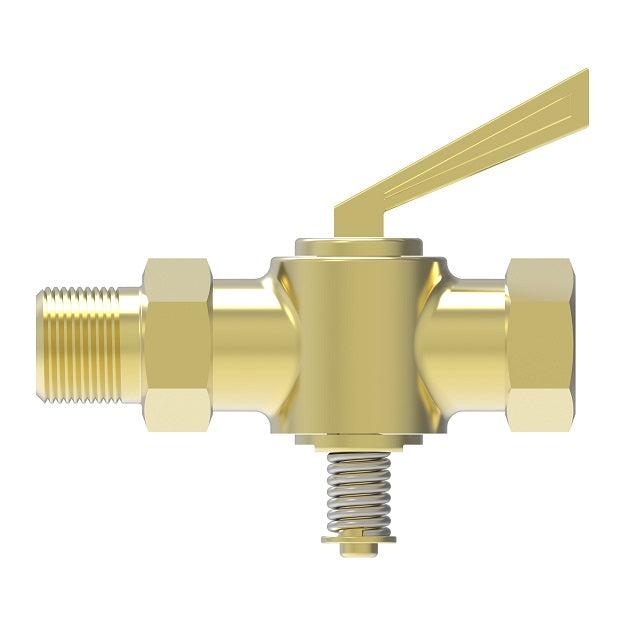

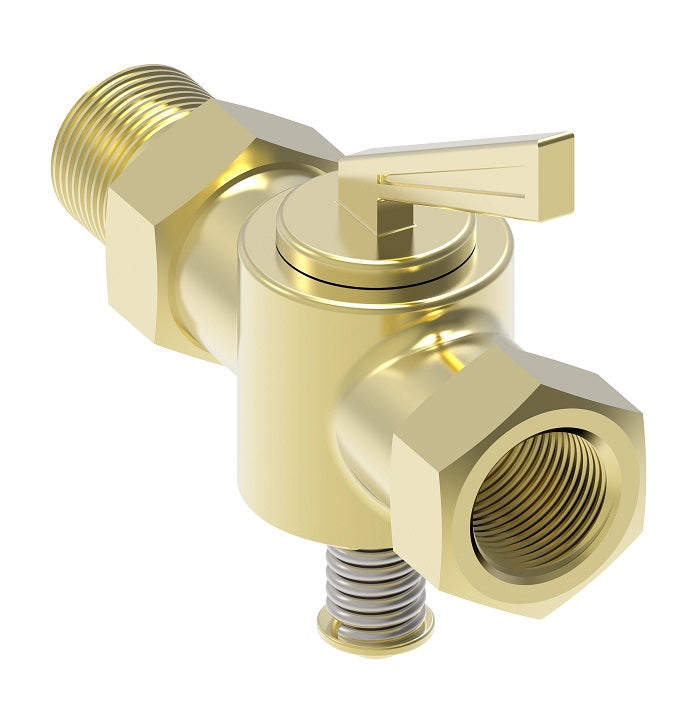

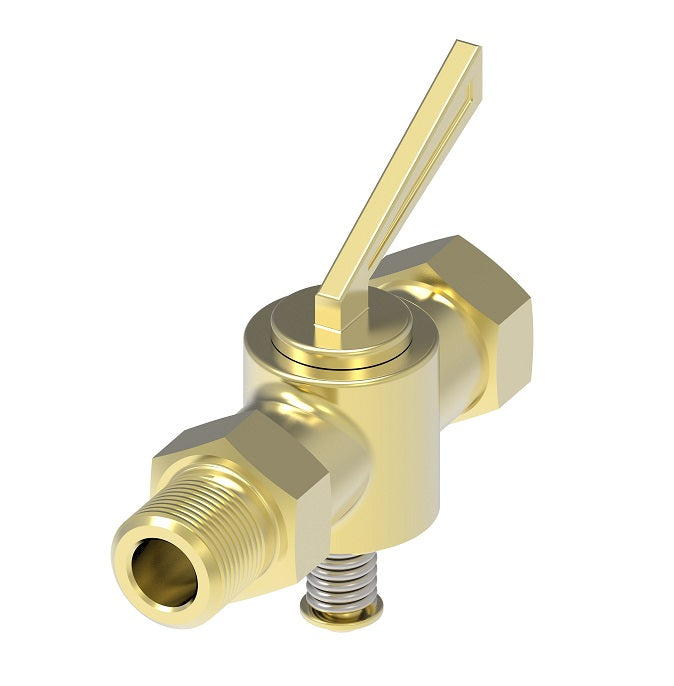

6824 by Danfoss | Ground Plug Drain | Male to Female Pipe | 1/8" Male NPTF x 1/8" Female NPTF | Brass

6824 by Danfoss | Ground Plug Drain | Male to Female Pipe | 1/8" Male NPTF x 1/8" Female NPTF | Brass

Name: 6824 by Danfoss | Ground Plug Drain | Male to Female Pipe | 1/8" Male NPTF x 1/8" Female NPTF | Brass
Brand: Danfoss/Eaton
SKU: 6824 Danfoss
Price: 15.28 USD
Availability: InStock

$15.28 - $15.28

$15.28

$15.28 - $15.28

$15.28

Aeroquip® by Danfoss
Ground Plug Drain - Male to Female Pipe

Specifications for Variant SKU: 6824 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/8in Male NPTF, 1/8in Female NPTF
Material(s):	Brass

Applications:
Designed for automotive or industrial use.
Used With:
Copper, aluminum, steel and plastic tubing where applicable.
Material:
Brass bodies and handles.
Pressure:
30 psi working pressure, except where noted.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with metal tubing. For use with plastic tubing, refer to the tubing temperature range.
Conformance:
Not intended for natural gas, LPG, nuclear or aircraft applications, except as noted.
Note:
Ground Plug Drains and Shut-Offs use a universal lubricant satisfactory for use with most common fluids. However the lubricant may wash out at higher pressures or with some exotic fluids.


Brass Part Number	Male Pipe Thread	Female Pipe Thread	L	M
6824	1/8"	1/8"	2.00"	1.88"
6829	1/4"	1/4"	2.12"	1.88"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
