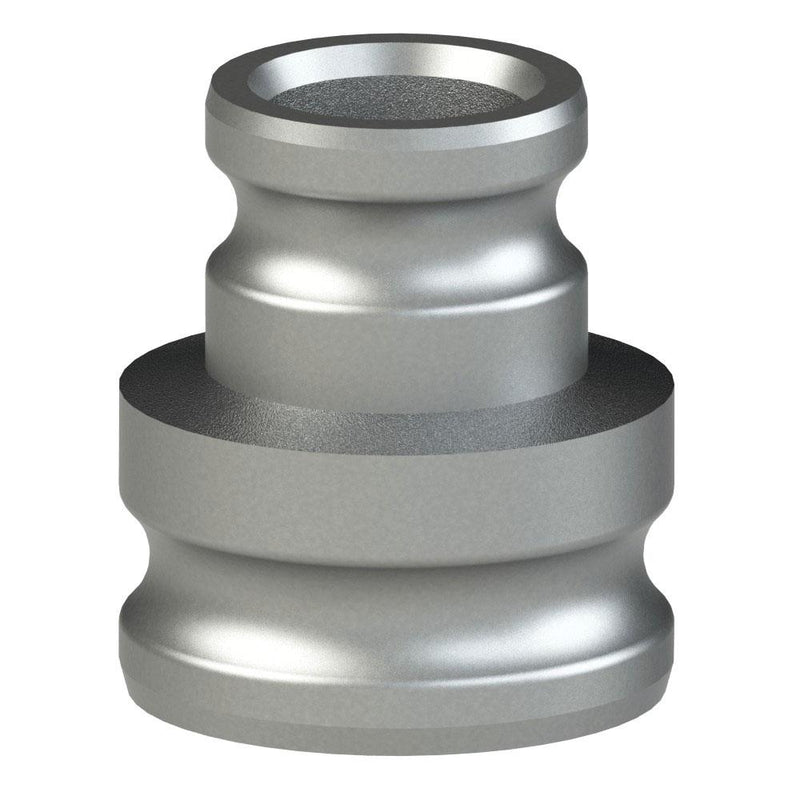

68284040 (SA40X40) by PT-Coupling | Cam & Groove Adapter | Spool Adapter | Type SA | 4" Adapter x 4" Adapter | Ductile Iron

Save $68.03

$183.28

$183.28 - $183.28

$183.28

$115.25

$115.25 - $115.25

$115.25

PT Coupling
Cam & Groove (Camlock) Adapter | Spool Adapter | Type SA | Adapter x Adapter | Ductile Iron

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 68284040 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	4in Male Cam & Groove, 4in Male Cam & Groove, Some Ends Match
Material(s):	Ductile Iron

Features & Applications:
Excellent abrasion and wear resistance. Good strength and toughness characteristics. Ideal for use with sand, grout, cement, and other abrasives. Made in the USA

Part Name	Item #	Adapter Size	Adapter Size	Max. Allowable Working Press. (PSI)*
SA20X20	68282020	2"	2"	250 PSI
SA20X30	68282030	2"	3"	200 PSI
SA30X30	68283030	3"	3"	200 PSI
SA40X40	68284040	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
