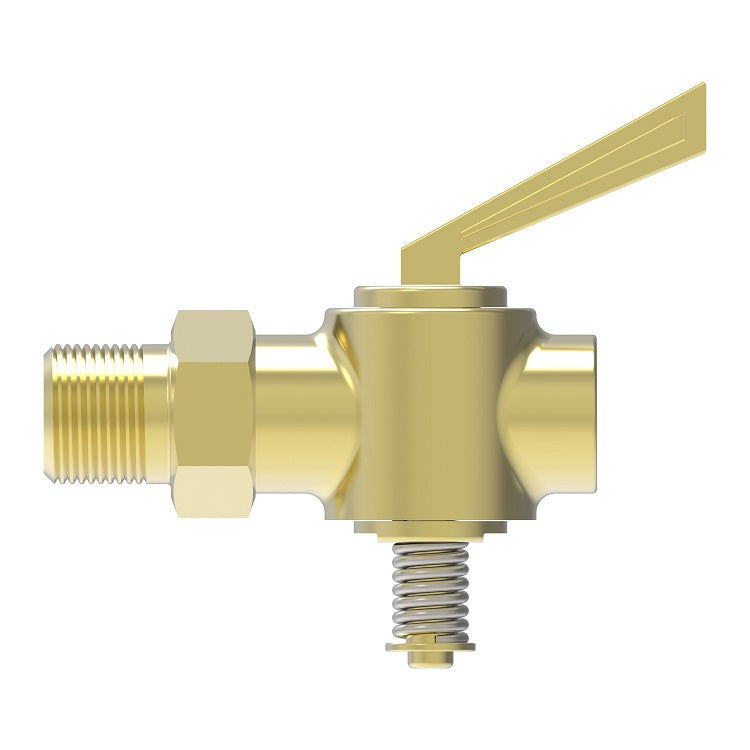

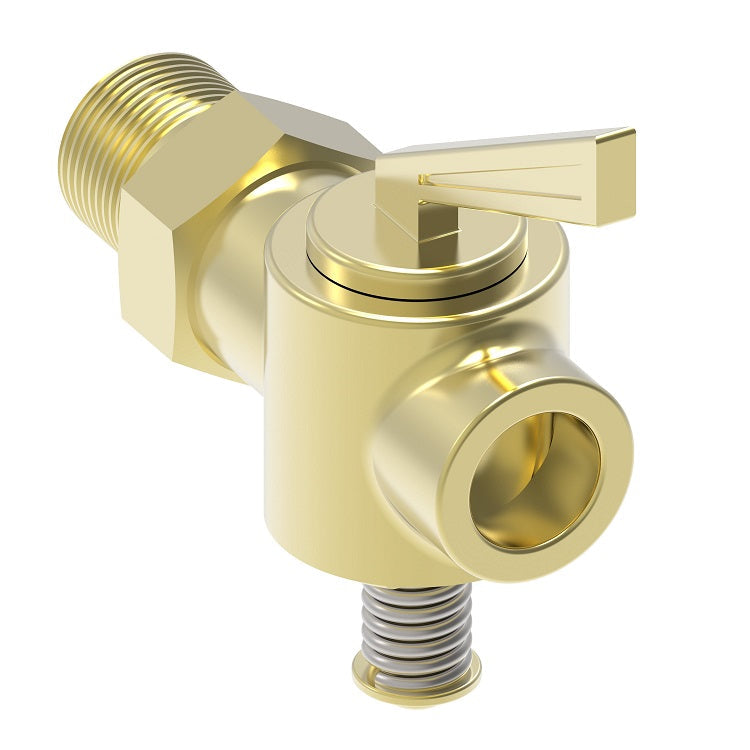

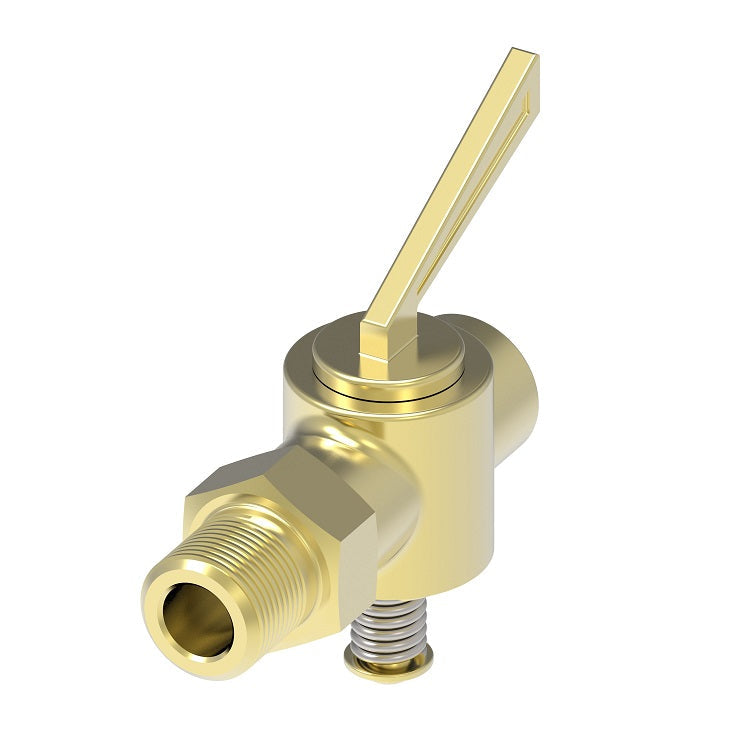

6893 by Danfoss | Ground Plug Drain | 3/8" Male MPT | Brass
6893 by Danfoss | Ground Plug Drain | 3/8" Male MPT | Brass
6893 by Danfoss | Ground Plug Drain | 3/8" Male MPT | Brass
6893 by Danfoss | Ground Plug Drain | 3/8" Male MPT | Brass

6893 by Danfoss | Ground Plug Drain | 3/8" Male MPT | Brass

$20.08 - $20.08
$20.08
$20.08 - $20.08
$20.08

Aeroquip® by Danfoss
Ground Plug Drain
Specifications for Variant SKU: 6893 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male Male NPT
Material(s): Brass
Applications:
  • Designed for automotive or industrial use.
Used With:
  • Copper, aluminum, steel and plastic tubing where applicable.
Material:
  • Brass bodies and handles.
Pressure:
  • 30 psi working pressure, except where noted.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • For use with plastic tubing, refer to the tubing temperature range.
Conformance:
  • Not intended for natural gas, LPG, nuclear or aircraft applications, except as noted.
Note:
  • Ground Plug Drains and Shut-Offs use a universal lubricant satisfactory for use with most common fluids. However the lubricant may wash out at higher pressures or with some exotic fluids.
Brass
Part Number 		Male Pipe
Thread		 Hex
C		 L N M M1
6891 1/8" 9/16" 1.93" 0.75" 1.63" 0.87"
6892 1/4" 5/8" 1.62" 0.75" 1.75" 1.03"
6893 3/8" 11/16" 1.72" 1.00" 2.31" 1.22"
