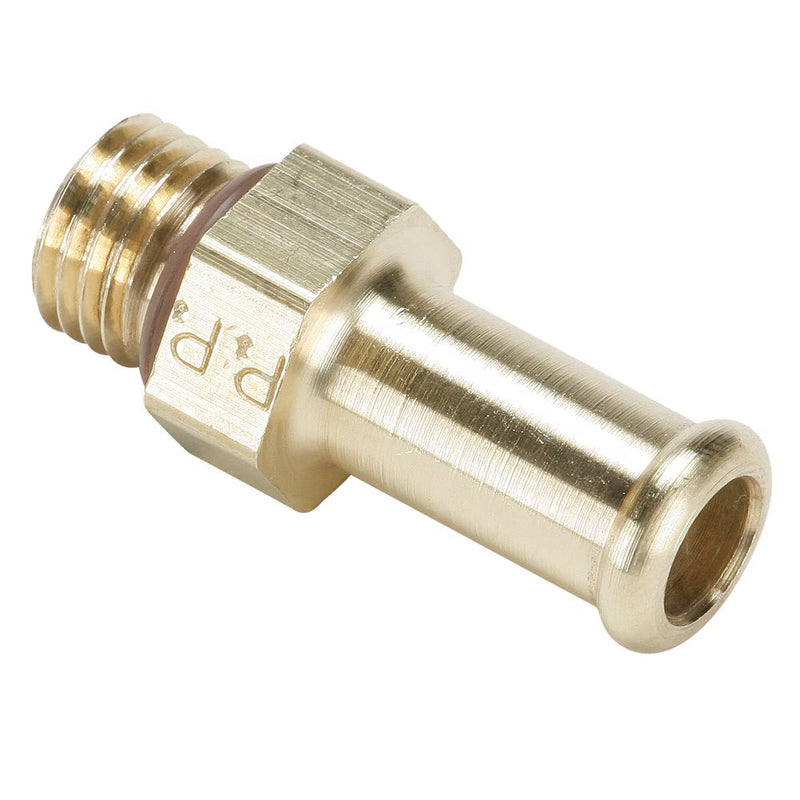

68HB-6-MI14 by Parker | 3/8" Hose Barb x M14X1.5 Metric Thread | 3/4" Hex | Straight | 1.51" Length | Straight | Brass | Pack of 5

Save $3.53

$38.80

$38.80 - $38.80

$38.80

$35.27

$35.27 - $35.27

$35.27

by Parker Hannifin
ISO Port Adapters:Hose Barb to Metric Adaptor 68HB-X-MIX

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 68HB-6-MI14 Parker \| 5 \|
Series:	68HB Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Fluorocarbon

Specification:
Product Features:	All brass construction Fluorocarbon O-ring NPTF, flare, hose barb, NTA end configurations
Markets:	Industrial Construction Mobile Factory/process automation
Applications:	Air Lines Water Line Cooling Lines
Temperature Range:	Dependent on tubing or hose end connection
Pressure Range:	Dependent on tubing or hose end connection


Part Number	Tube Size	Metric Thread	Hex	L	M	D
68HB-6-MI12	3/8"	M12X1.5	11/16"	1.50"	.78"	.24"
68HB-6-MI14	3/8"	M14X1.5	3/4"	1.51"	.78"	.30"
68HB-8-MI12	1/2"	M12X1.5	11/16"	1.50"	.78"	.24"
68HB-10-MI27	3/8"	M27X2.0	1-1/4"	1.77"	.78"	.50"

Note: Fluorocarbon o-ring is standard For working pressure and Temperature see Hose Barb Section

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
