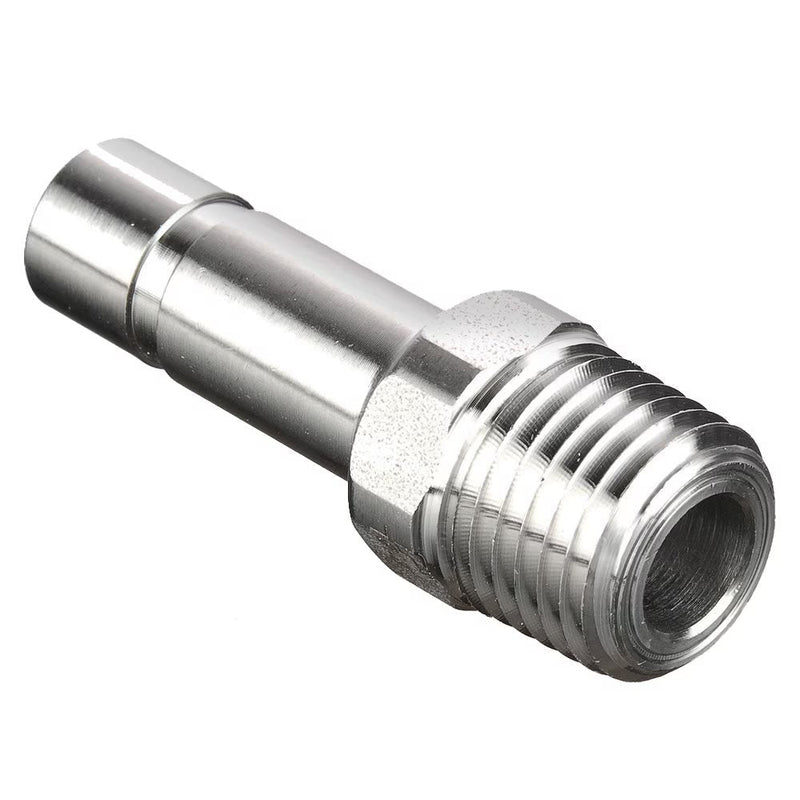

68PLSSP-8M-2 by Parker | Prestolok PLS Push-to-Connect Fittings | 8 mm Standpipe x 1/8" Male NPT Threads | 14 mm Height | 14 mm Width | Straight | Stainless Steel | Pack of 5

68PLSSP-8M-2 by Parker | Prestolok PLS Push-to-Connect Fittings | 8 mm Standpipe x 1/8" Male NPT Threads | 14 mm Height | 14 mm Width | Straight | Stainless Steel | Pack of 5

Save $80.89 Save $80.89
$202.22
$202.22 - $202.22
$202.22
$121.33
$121.33 - $121.33
$121.33

by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:68PLSSP Male Standpipe - Metric Tube to NPT

Package Quantity: 5 Units

Specifications for Variant SKU: 68PLSSP-8M-2 Parker | 5 |
Series: 68PLSSP Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • Stainless steel 316L collet
  • Stainless steel 316L body
  • FKM seal
  • Stainless steel 316L backup washer
  • Chemical, corrosion, and abrasion resistance
  • Hygienic design reduces retention zones for
  • Easy cleaning
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Petrochemical
  • Life Science
  • Pulp and Paper
  • Food Processing
  • Wash Down
Compatible Media:
  • Food Fluids
  • Chemicals
  • Cleaning Agents
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLS
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Stainless Steel (grooved)
  • Copper (grooved)
  • FEP
Part Number Tube Size NPT F H
68PLSSP-4M-2 4 mm 1/8" 11 mm 21 mm
68PLSSP-6M-2 6 mm 1/8" 11 mm 23 mm
68PLSSP-6M-4 6 mm 1/4" 14 mm 24 mm
68PLSSP-8M-2 8 mm 1/8" 14 mm 24 mm
68PLSSP-8M-4 8 mm 1/4" 11 mm 25 mm
68PLSSP-10M-4 10 mm 1/4" 14 mm 30 mm
68PLSSP-10M-6 10 mm 3/8" 17 mm 30 mm
