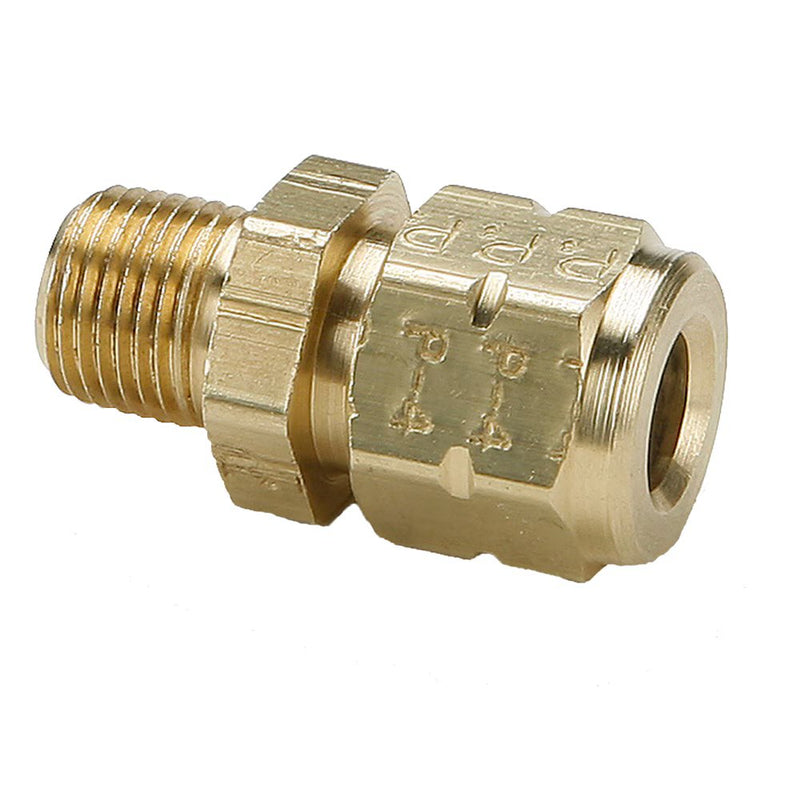

68VL-2-2 by Parker | Vibra-Lok Fittings | 1/8" Tube Size Connector x 1/8" Male Pipe Thread | 7/16" Hex | 1.12" Length | Straight | Brass | Pack of 50

68VL-2-2 by Parker | Vibra-Lok Fittings | 1/8" Tube Size Connector x 1/8" Male Pipe Thread | 7/16" Hex | 1.12" Length | Straight | Brass | Pack of 50

Save $55.34 Save $55.34
$608.71
$608.71 - $608.71
$608.71
$553.37
$553.37 - $553.37
$553.37

by Parker Hannifin
Vibra-Lok Fittings:Male Connector 68VL

Package Quantity: 50 Units

Specifications for Variant SKU: 68VL-2-2 Parker | 50 |
Brand: Vibra-Lok
Series: 68VL Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Fuel Grade, Vibration Resistance
Product Features:
  • Brass Body
  • Sleeves in Buna N and Fluorocarbon
  • NPTF and SAE J1926 Straight Threads are Standard
  • Excellent Vibration Resistance
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Oil
  • Fuel
  • Coolant Lines on engines
Specification:
Pressure Range: Dependent on condition and tube size, refer to pressure chart
Temperature Range: -15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve
-30° to +275° F (-34.4° to +135° C) with Buna N Sleeve
Compatible Tubing:
  • Copper
  • Aluminum
  • Steel (Bundy)
  • Stainless Steel
  • Glass
Part Number Tube Size Pipe Thread Hex (C) L M Flow Diameter (D)
68VL-2-2 1/8" 1/8" 7/16" 1.12" .81" .093"
68VL-3-2 3/16" 1/8" 1/2" 1.10" .81" .125"
68VL-4-2 1/4" 1/8" 9/16" 1.15" .84" .188"
68VL-4-4 1/4" 1/4" 9/16" 1.34" 1.03" .188"
68VL-5-4 5/16" 1/4" 5/8" 1.41" 1.06" .250"
68VL-6-2 3/8" 1/8" 11/16" 1.22" .87" .235"
68VL-6-4 3/8" 1/4" 11/16" 1.41" 1.06" .312"
68VL-6-6 3/8" 3/8" 11/16" 1.41" 1.06" .312"
68VL-8-6 1/2" 3/8" 7/8" 1.64" 1.16" .406"
68VL-8-8 1/2" 1/2" 7/8" 1.64" 1.35" .406"
68VL-10-8 5/8" 1/2" 1-1/16" 2.10" 1.44" .560"
68VL-12-8 3/4" 1/2" 1-3/16" 2.26" 1.50" .530"
68VL-12-12 3/4" 3/4" 1-3/16" 2.26" 1.50" .688"
