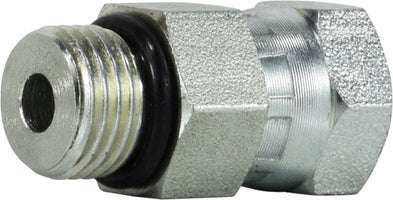

6900O42 (6900-O-4-2) Midland Hydraulic Male O-Ring Swivel Adapter - 7/16-20 Male O-Ring Boss x 1/8" Female NPSM - Steel

6900O42 by Midland | Hydraulic Male O-Ring Swivel | 7/16-20 Male O-Ring Boss x 1/8" Female NPSM | Adapter | Steel

Save $0.80 Save $0.80
$5.14
$5.14 - $5.14
$5.14
$4.34
$4.34 - $4.34
$4.34

Midland Industries
Hydraulic Adapters: Male O-Ring Swivel Adapter - Steel

Inventory @ Manufacturers Warehouse: 5 Units
Specifications for Variant SKU: 6900O42 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Male O-Ring Boss, 1/8in Female NPSM
Material(s): Steel
Applicable Specs & Approvals: Applicable SAE Standards
Specifications:
  • SAE 140157
Technical Info:
Crossover Series:
6900 2066R 1235 9315
Part Number Male O-Ring Boss
Size		 Male O-Ring Boss
Thread
(1)		 Female NPSM
(2)
6900O42
(6900-O-42)		 1/4" 7/16-20 1/8"
6900O44
(6900-O-4-4) 		1/4" 7/16-20 1/4"
6900O46
(6900-O-4-6) 		1/4" 7/16-20 3/8"
6900O48 1/4" 7/16-20" 1/2"
6900O54 5/16" 1/2-20 1/4"
6900O64
(6900-O-6-4) 		3/8" 9/16-18 1/4"
6900O66
(6900-O-6-6) 		3/8" 9/16-18 3/8"
6900O68
(6900-O-6-8) 		3/8" 9/16-18 1/2"
6900O86
(6900-O-8-6) 		1/2" 3/4-16 3/8"
6900O88
(6900-O-8-8) 		1/2" 3/4-16 1/2"
6900O812
(6900-O-8-12) 		1/2" 3/4-16 3/4"
6900O104
(6900-O-10-4) 		5/8" 7/8-14 1/4"
6900O106 5/8" 7/8-14 3/8"
6900O108
(6900-O-10-8) 		5/8" 7/8-14 1/2"
6900O1012
(6900-O-10-12) 		5/8" 7/8-14 3/4"
6900O126 3/4" 1-1/16-12 3/8"
6900O128
(6900-O-12-8) 		3/4" 1-1/16-12 1/2"
6900O1212
(6900-O-12-12) 		3/4" 1-1/16-12 3/4"
6900O1612
(6900-O-16-12) 		1" 1-5/16-12 3/4"
6900O1616
(6900-O-16-12) 		1" 1-5/16-12 1"
6900O1620 1" 1-5/16-12 1-1/4"
6900O2020 1-1/4" 1-5/8-12" 1-1/4"
6900O3232 2" 2-1/2-12 2"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.

Shop Parts by Midland Industries
