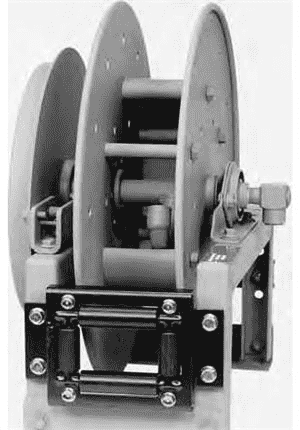

700 Hannay Spring Rewind Reel (716-23-24-15.5G)

716-23-24-15.5G by Hannay | #42-35 | 700 Series | Spring Rewind Reel

Save $72.59 Save $72.59
$865.92
$865.92 - $865.92
$865.92
$793.33
$793.33 - $793.33
$793.33



700 Spring Rewind Reels To handle 1/4" through 1/2" I.D. hose.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 716-23-24-15.5G Hannay
Series: 700 Series
Applications:
  • Lubrication
  • Air/Water
  • Assembly Operations
  • Washdown
  • Air Tools
  • General Industrial Applications
Features:
  • Rollformed channel frame for heavy-duty applications.
  • Non sparking ratchet assembly.
  • Declutching arbor to prevent damage from reverse winding.
  • Standard inlet 90 deg. balanced pressure swivel joint 1/2" female NPT threads.
  • Standard outlet 1/2" female NPT threads.
  • Standard Pressures to 3000 psi (207 bar) (available up to 10,000 psi 690 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • 4-way roller assembly.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 3/8" 1/2"
O.D. (in) 5/8" 3/4" A B C D E F G H X Y
716-23-24-15.5J 65' length 65' length 79 lbs. 9.25" 4" 15.5" 23.25" 24.38" 12.75" 23.88" 12.5" 4.5" 20"
716-23-24-15.5G 75' length 65' length 94 lbs. 9.25" 4" 15.5" 23.25" 24.38" 12.75" 23.88" 12.5" 4.5" 20"
716-25-26-15.5B 75' length 75' length 90 lbs. 9.25" 4" 15.5" 25" 26.12" 12.75" 25.88" 13.5" 4.5" 21.75"
718-25-26-15.5G 100' length 100' length 96 lbs. 11.25" 6" 15.5" 25" 26.12" 14.75" 25.88" 13.5" 6.5" 21.75"
718-30-31-20D 150' length 125' length 127 lbs. 11.25" 6" 20" 28.5" 29.62" 15.5" 31.38" 17" 6.5" 25.25"
