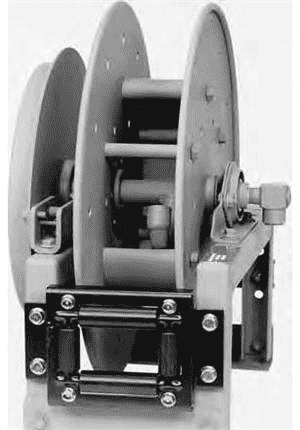

700 Hannay Spring Rewind Reel (718-25-26-15.5G)

718-25-26-15.5G by Hannay | #42-42 | 700 Series | Spring Rewind Reel

Save $46.14 Save $46.14
$928.14
$928.14 - $928.14
$928.14
$882.00
$882.00 - $882.00
$882.00



700 Spring Rewind Reels To handle 1/4" through 1/2" I.D. hose.
Specifications for Variant SKU: 718-25-26-15.5G Hannay
Series: 700 Series
Applications:
  • Lubrication
  • Air/Water
  • Assembly Operations
  • Washdown
  • Air Tools
  • General Industrial Applications
Features:
  • Rollformed channel frame for heavy-duty applications.
  • Non sparking ratchet assembly.
  • Declutching arbor to prevent damage from reverse winding.
  • Standard inlet 90 deg. balanced pressure swivel joint 1/2" female NPT threads.
  • Standard outlet 1/2" female NPT threads.
  • Standard Pressures to 3000 psi (207 bar) (available up to 10,000 psi 690 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • 4-way roller assembly.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 3/8" 1/2"
O.D. (in) 5/8" 3/4" A B C D E F G H X Y
716-23-24-15.5J 65' length 65' length 79 lbs. 9.25" 4" 15.5" 23.25" 24.38" 12.75" 23.88" 12.5" 4.5" 20"
716-23-24-15.5G 75' length 65' length 94 lbs. 9.25" 4" 15.5" 23.25" 24.38" 12.75" 23.88" 12.5" 4.5" 20"
716-25-26-15.5B 75' length 75' length 90 lbs. 9.25" 4" 15.5" 25" 26.12" 12.75" 25.88" 13.5" 4.5" 21.75"
718-25-26-15.5G 100' length 100' length 96 lbs. 11.25" 6" 15.5" 25" 26.12" 14.75" 25.88" 13.5" 6.5" 21.75"
718-30-31-20D 150' length 125' length 127 lbs. 11.25" 6" 20" 28.5" 29.62" 15.5" 31.38" 17" 6.5" 25.25"
Hannay Reels

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
