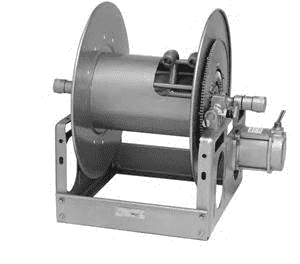

7000 Hannay Electric Powered Rewind Dual Hose Reel (EP-7016-25-26) 12 Volt DC

EP-7016-25-26 by Hannay | 7000 Series | Electric Powered Rewind Dual Hose Reel | 12 Volt DC

$1,913.33 - $1,913.33
$1,913.33
$1,920.10
$1,920.10 - $1,920.10
$1,920.10



7000 Electric Powered Rewind Dual Hose Reels To handle dual 3/4" or 1" I.D. hose.
Specifications for Variant SKU: EP-7016-25-26 Hannay
Series: 7000 Series
Applications:
  • Hydraulics
  • Dual Agents
Features:
  • Two swivel joint inlets and two outlet risers to handle two equal lengths of hose.
  • Chain & sprocket drive powered by an electric motor. An auxiliary rewind is standard.
  • Power rewind reels feature a comet brake.
  • Standard inlets 90 deg. ball bearing swivel joints 1" female NPT threads.
  • Standard outlets 1" female NPT threads.
  • Standard inlet, outlet riser and hub assembly are steel.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 3/4" 1"
O.D. (in) 1-9/32" 1-9/16" A B D E F Crank F Power G H X Y
EP-7024-19-21 (two) 60' lengths (two) 25' lengths 140 lbs. 21" 15.5" 20.5" 21.88" 29.75" 32.12" 21.5" 12.12" 13" 16.75"
EP-7026-23-24 (two) 90' lengths (two) 50' lengths 145 lbs. 23" 17.5" 20.5" 23" 31.75" 34.12" 23.5" 12.12" 15" 16.75"
EP-7016-25-26 (two) 40' lengths (two) 30' lengths 135 lbs. 13" 7.5" 25.5" 24.75" 21.75" 24.12" 27.88" 15.5" 7.75" 21.75"
EP-7032-25-26 (two) 175' lengths (two) 100' lengths 169 lbs. 29.5" 24" 25.5" 24.75" 38.25" 40.62" 27.88" 15.5" 21.5" 21.75"
EP-7032-30-31† (two) 300' lengths (two) 150' lengths 177 lbs. 29.5" 24" 25.5" 28.75" 38.25" 40.62" 29.88" 15.5" 21.5" 21.75"
EP-7024-33-34† (two) 225' lengths (two) 115' lengths 160 lbs. 20.5" 15.5" 31.5" 31.75" 29.75" 32.12" 33.62" 17.75" 13" 27.75"
EP-7032-33-34† (two) 350' lengths (two) 200' lengths 177 lbs. 29" 24" 31.5" 31.75" 38.25" 40.62" 33.62" 17.75" 21.5" 27.75"

† Some applications require a clutch/reduction unit.

Hannay Reels

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
