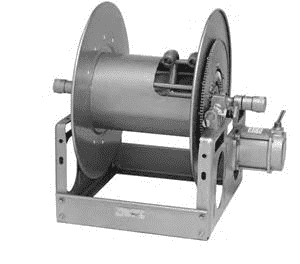

7000 Hannay Electric Powered Rewind Dual Hose Reel (EP-7024-19-21) 12 Volt DC

Save $191.33 Save $191.33
Original price $1,913.33
Original price $1,913.33 - Original price $1,913.33
Original price $1,913.33
Current price $1,722.00
$1,722.00 - $1,722.00
Current price $1,722.00



7000 Electric Powered Rewind Dual Hose Reels To handle dual 3/4" or 1" I.D. hose.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for SKU: EP-7024-19-21 Hannay
Series: 7000 Series
Applications:
  • Hydraulics
  • Dual Agents
Features:
  • Two swivel joint inlets and two outlet risers to handle two equal lengths of hose.
  • Chain & sprocket drive powered by an electric motor. An auxiliary rewind is standard.
  • Power rewind reels feature a comet brake.
  • Standard inlets 90 deg. ball bearing swivel joints 1" female NPT threads.
  • Standard outlets 1" female NPT threads.
  • Standard inlet, outlet riser and hub assembly are steel.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 3/4" 1"
O.D. (in) 1-9/32" 1-9/16" A B D E F Crank F Power G H X Y
EP-7024-19-21 (two) 60' lengths (two) 25' lengths 140 lbs. 21" 15.5" 20.5" 21.88" 29.75" 32.12" 21.5" 12.12" 13" 16.75"
EP-7026-23-24 (two) 90' lengths (two) 50' lengths 145 lbs. 23" 17.5" 20.5" 23" 31.75" 34.12" 23.5" 12.12" 15" 16.75"
EP-7016-25-26 (two) 40' lengths (two) 30' lengths 135 lbs. 13" 7.5" 25.5" 24.75" 21.75" 24.12" 27.88" 15.5" 7.75" 21.75"
EP-7032-25-26 (two) 175' lengths (two) 100' lengths 169 lbs. 29.5" 24" 25.5" 24.75" 38.25" 40.62" 27.88" 15.5" 21.5" 21.75"
EP-7032-30-31 (two) 300' lengths (two) 150' lengths 177 lbs. 29.5" 24" 25.5" 28.75" 38.25" 40.62" 29.88" 15.5" 21.5" 21.75"
EP-7024-33-34 (two) 225' lengths (two) 115' lengths 160 lbs. 20.5" 15.5" 31.5" 31.75" 29.75" 32.12" 33.62" 17.75" 13" 27.75"
EP-7032-33-34 (two) 350' lengths (two) 200' lengths 177 lbs. 29" 24" 31.5" 31.75" 38.25" 40.62" 33.62" 17.75" 21.5" 27.75"

† Some applications require a clutch/reduction unit.
