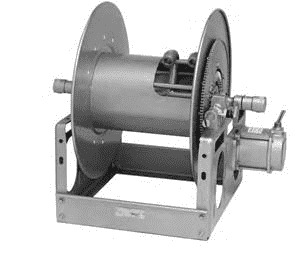

7000 Hannay Electric Powered Rewind Dual Hose Reel (EP-7024-33-34) 12 Volt DC

EP-7024-33-34 by Hannay | 7000 Series | Electric Powered Rewind Dual Hose Reel | 12 Volt DC

Save $1,280.07 Save $1,280.07
$3,200.17
$3,200.17 - $3,200.17
$3,200.17
$1,920.10
$1,920.10 - $1,920.10
$1,920.10



7000 Electric Powered Rewind Dual Hose Reels To handle dual 3/4" or 1" I.D. hose.
Specifications for Variant SKU: EP-7024-33-34 Hannay
Series: 7000 Series
Applications:
  • Hydraulics
  • Dual Agents
Features:
  • Two swivel joint inlets and two outlet risers to handle two equal lengths of hose.
  • Chain & sprocket drive powered by an electric motor. An auxiliary rewind is standard.
  • Power rewind reels feature a comet brake.
  • Standard inlets 90 deg. ball bearing swivel joints 1" female NPT threads.
  • Standard outlets 1" female NPT threads.
  • Standard inlet, outlet riser and hub assembly are steel.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 3/4" 1"
O.D. (in) 1-9/32" 1-9/16" A B D E F Crank F Power G H X Y
EP-7024-19-21 (two) 60' lengths (two) 25' lengths 140 lbs. 21" 15.5" 20.5" 21.88" 29.75" 32.12" 21.5" 12.12" 13" 16.75"
EP-7026-23-24 (two) 90' lengths (two) 50' lengths 145 lbs. 23" 17.5" 20.5" 23" 31.75" 34.12" 23.5" 12.12" 15" 16.75"
EP-7016-25-26 (two) 40' lengths (two) 30' lengths 135 lbs. 13" 7.5" 25.5" 24.75" 21.75" 24.12" 27.88" 15.5" 7.75" 21.75"
EP-7032-25-26 (two) 175' lengths (two) 100' lengths 169 lbs. 29.5" 24" 25.5" 24.75" 38.25" 40.62" 27.88" 15.5" 21.5" 21.75"
EP-7032-30-31† (two) 300' lengths (two) 150' lengths 177 lbs. 29.5" 24" 25.5" 28.75" 38.25" 40.62" 29.88" 15.5" 21.5" 21.75"
EP-7024-33-34† (two) 225' lengths (two) 115' lengths 160 lbs. 20.5" 15.5" 31.5" 31.75" 29.75" 32.12" 33.62" 17.75" 13" 27.75"
EP-7032-33-34† (two) 350' lengths (two) 200' lengths 177 lbs. 29" 24" 31.5" 31.75" 38.25" 40.62" 33.62" 17.75" 21.5" 27.75"

† Some applications require a clutch/reduction unit.
