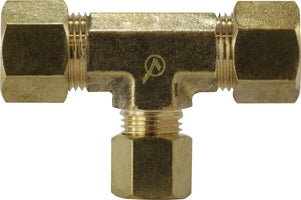

700084-040402 Midland Lead Free Compression Fitting - Reducing Tee - 1/4" Tube OD x 1/4" Tube OD x 1/8" Tube OD - Brass

700084-040402 by Midland | Lead Free Compression Fitting | Reducing | 1/4" Tube OD x 1/4" Tube OD x 1/8" Tube OD | Tee | Brass | Replaces: 18114LF

Save $1.10

$7.05

$7.05 - $7.05

$7.05

$5.95

$5.95 - $5.95

$5.95

Midland Industries
Lead Free Brass Fitting - Compression Fitting - Reducing Tee

Quantity

Specifications for Variant SKU: 700084-040402 Midland
Shape (Orientation):	Tee
Ends Configuration:	1/4in Tube Compression, 1/4in Tube Compression, 1/8in Tube Compression
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

SPECIFICATIONS

Applications:	Water, Gasoline, Oil, and Vacuum Lines.	Used With:	Copper, Aluminum, Or Plastic Tubing (Plastic requires 60P Sleeve and 61P Insert)
Temperature Range:	-40°F to +250°F	Conformance:	Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free:	Yes. Lead Free Info (PDF)

Features:
Three piece construction- nut, sleeve (or ferrule) and body. Easy to disassemble, no flaring tool required.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	7/8"
Thread Size	5/16-24	3/8-24	7/16-24	1/2-24	9/16-24	5/8-24	11/16-20	13/16-18	1-18	1-1/8-18

Crossover Series:
LF264B	64-R


Part Number	Tube OD x Tube OD x Tube OD (1 x 2 x 3)
700084-040402	1/4" x 1/4" x 1/8"
700084-040406	1/4" x 1/4" x 3/8"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.

Shop Parts by Midland Industries
