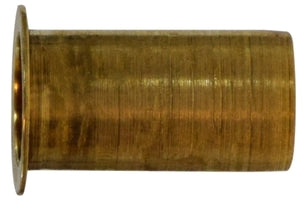

700561-02 Midland Lead Free Compression Fitting - Insert - 1/8" Tube OD - Brass

700561-06 by Midland | Lead Free Compression Fitting | Insert | 3/8" Tube OD | Brass

Save $0.05 Save $0.05
$0.47
$0.47 - $0.47
$0.47
$0.42
$0.42 - $0.42
$0.42

Midland Industries
Lead Free Brass Fitting - Compression Fitting - Insert

Sleeve

Inventory @ Manufacturers Warehouse: 22341 Units
Specifications for Variant SKU: 700561-06 Midland
Shape (Orientation): No Orientation
Material(s): Lead Free Brass
Applicable Specs & Approvals: Lead Free as per the Safe Drinking Water Act
Special Properties: Lead Free

SPECIFICATIONS

Applications: Water, Gasoline, Oil, and Vacuum Lines. Used With: Copper, Aluminum, Or Plastic Tubing (Plastic requires 60P Sleeve and 61P Insert)
Temperature Range: -40°F to +250°F Conformance: Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free: Yes. Lead Free Info (PDF)
Features:
  • Three piece construction- nut, sleeve (or ferrule) and body.
  • Easy to disassemble, no flaring tool required.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/8-18
Part Number Tube OD
700561-02 1/8"
700561-03 3/16"
700561-05 5/16"
700561-06 3/8"
700561-08 1/2"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
