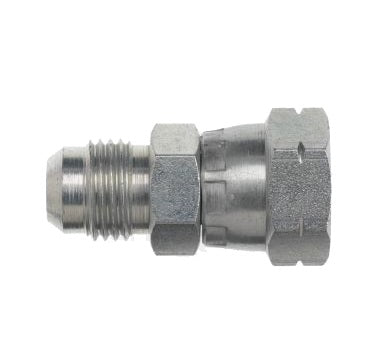

7007-06-L10-16 by Brennan Inc. | -06 Male JIC x 16mm Female Light Metric Swivel | Straight | Steel

Original price $6.02 - Original price $6.02
Original price $6.02
$7.63
$7.63 - $7.63
Current price $7.63

Brennan Inc.
Conversion Adapters: 7007-L - Male JIC x Female Light Metric Swivel Straight

Specifications for Variant SKU: 7007-06-L10-16 Brennan
Shape (Orientation): Straight
Ends Configuration: 3/8in Male JIC, 16mm Female Metric
Material(s): Steel
Special Properties: Swivel
Part Number Material B1 TubeO.D B2 TubeO.D B1JIC 37° B2MS B1Drill B2Drill LLength C1Hex C2Hex
7007-04-L06-12 Steel 1/4" 06mm 7/16-20" M12X1.5 4.40mm 2.50mm 37.80mm 12.00mm 14.00mm
7007-05-L06-12 Steel 5/16" 06mm 1/2-20" M12X1.5 6.00mm 2.50mm 37.80mm 14.00mm 14.00mm
7007-06-L08-14 Steel 3/8" 08mm 9/16-18" M14X1.5 7.50mm 4.00mm 39.20mm 17.00mm 17.00mm
7007-06-L10-16 Steel 3/8" 10mm 9/16-18" M16X1.5 7.50mm 6.00mm 41.20mm 17.00mm 19.00mm
7007-06-L12-18 Steel 3/8" 12mm 9/16-18" M18X1.5 7.50mm 8.00mm 39.10mm 19.00mm 22.00mm
7007-06-L15-22 Steel 3/8" 15mm 9/16-18" M22X1.5 7.50mm 10.00mm 39.60mm 22.00mm 27.00mm
7007-08-L10-16 Steel 1/2" 10mm 3/4-16" M16X1.5 9.90mm 6.00mm 43.90mm 19.00mm 19.00mm
7007-08-L12-18 Steel 1/2" 12mm 3/4-16" M18X1.5 9.90mm 8.00mm 43.90mm 19.00mm 22.00mm
7007-08-L15-22 Steel 1/2" 15mm 3/4-16" M22X1.5 9.90mm 10.00mm 42.20mm 22.00mm 27.00mm
7007-08-L18-26 Steel 1/2" 18mm 3/4-16" M26X1.5 9.90mm 13.0mm 43.20mm 24.00mm 32.00mm
7007-10-L12-18 Steel 5/8" 12mm 7/8-14" M18X1.5 12.30mm 8.00mm 48.00mm 24.00mm 22.00mm
7007-10-L15-22 Steel 5/8" 15mm 7/8-14" M22X1.5 12.30mm 10.00mm 50.00mm 24.00mm 27.00mm
7007-12-L18-26 Steel 3/4" 18mm 1-1/16-12" M26X1.5 15.50mm 13.00mm 54.50mm 27.00mm 32.00mm
7007-12-L22-30 Steel 3/4" 22mm 1-1/16-12" M30X2 15.47mm 17.00mm 56.50mm 27.00mm 36.00mm
7007-20-L35-45 Steel 1-1/4" 35mm 1-5/8-12" M45X2 27.50mm 29.00mm 64.90mm 46.00mm 50.00mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
