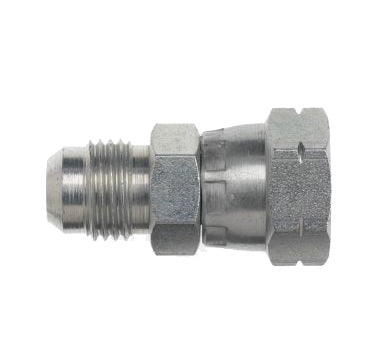

7007-10-S12-20 by Brennan Inc. | -10 Male JIC x 20mm Female Heavy Metric Swivel | Straight | Steel

7007-10-S12-20 by Brennan Inc. | -10 Male JIC x 20mm Female Heavy Metric Swivel | Straight | Steel

$15.17 - $15.17
$15.17
$19.24
$19.24 - $19.24
$19.24

Brennan Inc.
Conversion Adapters: 7007-S - Male JIC x Female Heavy Metric Swivel Straight
Specifications for Variant SKU: 7007-10-S12-20 Brennan
Shape (Orientation): Straight
Ends Configuration: 5/8in Male JIC, 20mm Female Metric
Material(s): Steel
Special Properties: Swivel
Part Number Material B1 TubeO.D B2 TubeO.D B1JIC 37° B2MS B1Drill B2Drill LLength C1Hex C2Hex
7007-04-S06-14 Steel 1/4" 06mm 7/16-20" M14X1.5 4.40mm 2.50mm 39.80mm 12.00mm 17.00mm
7007-06-S10-18 Steel 3/8" 10mm 9/16-18" M18X1.5 7.50mm 6.00mm 43.20mm 17.00mm 22.00mm
7007-06-S12-20 Steel 3/8" 12mm 9/16-18" M20X1.5 7.50mm 8.00mm 39.10mm 19.00mm 24.00mm
7007-08-S12-20 Steel 1/2" 12mm 3/4-16" M20X1.5 9.90mm 7.30mm 40.00mm 22.00mm 27.00mm
7007-08-S16-24 Steel 1/2" 16mm 3/4-16" M24X1.5 9.90mm 11.00mm 43.70mm 22.00mm 30.00mm
7007-10-S12-20 Steel 5/8" 12mm 7/8-14" M20X1.5 12.30mm 8.00mm 50.00mm 24.00mm 24.00mm
7007-12-S16-24 Steel 3/4" 16mm 1-1/16-12" M24X1.5 15.50mm 11.00mm 57.00mm 27.00mm 30.00mm
7007-12-S20-30 Steel 3/4" 20mm 1-1/16-12" M30X2 15.50mm 14.00mm 61.00mm 27.00mm 36.00mm
7007-12-S25-36 Steel 3/4" 25mm 1-1/16-12" M36X2 15.47mm 15.47mm 55.50mm 36.00mm 46.00mm
7007-16-S30-42 Steel 1" 30mm 1-5/16-12" M42X2 21.50mm 23.00mm 56.80mm 41.30mm 50.00mm
7007-20-S30-42 Steel 1-1/4" 30mm 1-5/8-12" M42X2 27.40mm 20.00mm 61.00mm 46.00mm 50.00mm
7007-24-S38-52 Steel 1-1/2" 38mm 1-7/8-12" M52X2 33.00mm 32.00mm 82.30mm 50.00mm 60.00mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
