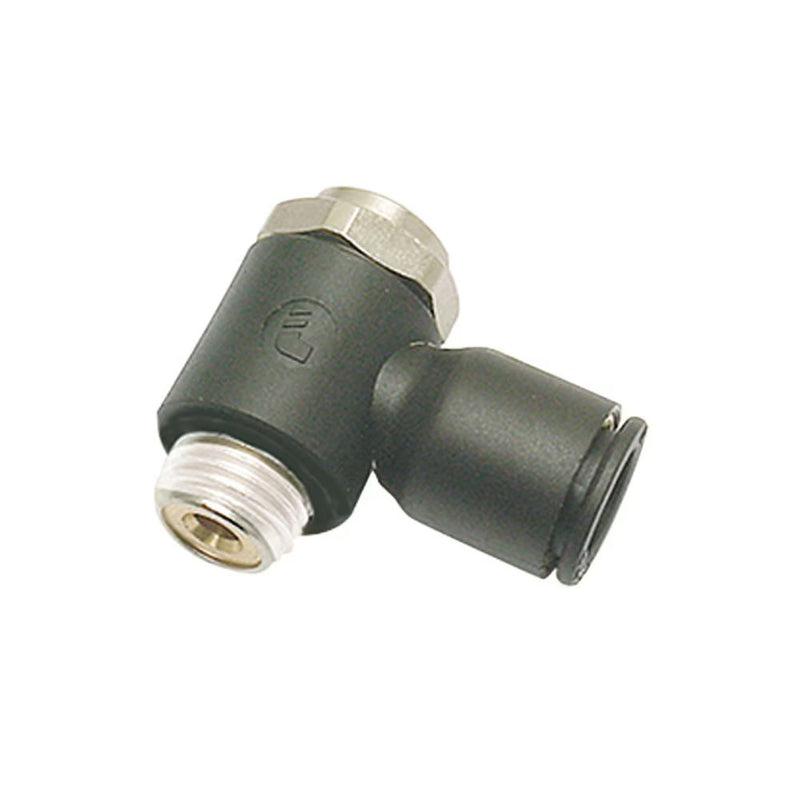

7015 56 11 by Parker | Pneumatic Legris Flow Control Regulators | 1/4" Push-to-Connect x 1/8" Male NPT Thread | 90° Elbow | Polymer

7015 56 11 by Parker | Pneumatic Legris Flow Control Regulators | 1/4" Push-to-Connect x 1/8" Male NPT Thread | 90° Elbow | Polymer | Pack of 10

$221.84 - $221.84
$221.84
$246.80
$246.80 - $246.80
$246.80

by Parker Hannifin
Pneumatic Flow Control Regulators:Regulators with Knobless Adjustment

Package Quantity: 10 Units

Specifications for Variant SKU: 7015 56 11 Parker | 10 |
Series: 7015 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number Push-to-Connect Size NPT Thread Kg
7015 08 11 8 mm 1/8" .02 Kg
7015 08 14 8 mm 1/4" .035 Kg
7015 53 11 1/8" 1/8" .017 Kg
7015 56 11 1/4" 1/8" .019 Kg
7015 60 14 3/8" 1/4" .038 Kg
7015 60 18 3/8" 3/8" .043 Kg
