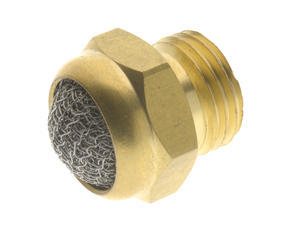

7020-1/8" AIGNEP | Mufflers and Silencers Series | 1/8" BSPP Breather Vent | Brass Body | 304 Stainless Steel Mesh | 100 Micron | 14 to 176 F
7020-1/8 by AIGNEP | Mufflers and Silencers Series | 1/8" BSPP Breather Vent | 304 Stainless Steel Mesh | 100 Micron | 14 to 176 F | Brass
7020-1/8" AIGNEP | Mufflers and Silencers Series | 1/8" BSPP Breather Vent | Brass Body | 304 Stainless Steel Mesh | 100 Micron | 14 to 176 F

7020-1/8 by AIGNEP | Mufflers and Silencers Series | 1/8" BSPP Breather Vent | 304 Stainless Steel Mesh | 100 Micron | 14 to 176 F | Brass

Save $0.02 Save $0.02
$1.47
$1.47 - $1.47
$1.47
$1.45
$1.45 - $1.45
$1.45
Specifications for Variant SKU: 7020-1/8 AIGNEP
Series: Mufflers and Silencers Series

Silencer With Wire Mesh Stainless Steel 304


Part Number A F H CH Noise level
in (dB) at 6 bar		 °C Min °C Max Bar Filtration
Threshold
7020-M5 M5 4mm 8mm 8mm - -10 +80 12 100 µm
7020-1/8 1/8" 6mm 15mm 13mm 74 -10 +80 12 100 µm
7020-1/4 1/4" 7mm 18mm 16mm 72 -10 +80 12 100 µm
7020-3/8 3/8" 8mm 20mm 19mm 88 -10 +80 12 100 µm
7020-1/2 1/2" 10mm 22mm 24mm 90 -10 +80 12 100 µm
7020-3/4 3/4" 10mm 26mm 30mm 90 -10 +80 12 100 µm
7020-1 1" 12mm 28mm 36mm 92 -10 +80 12 100 µm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
