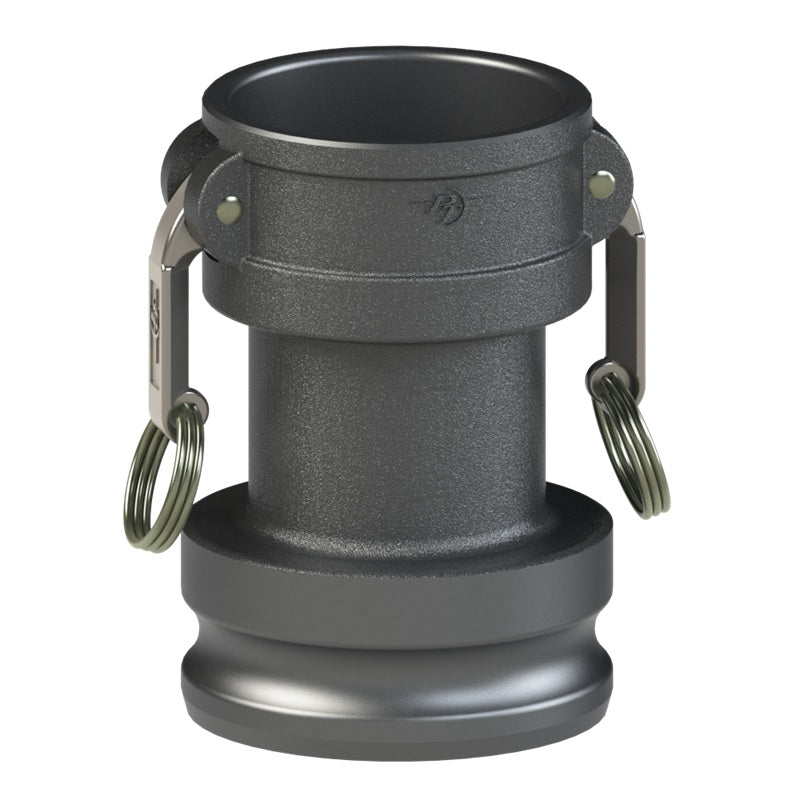

70263040 (30CX40A LONG) by PT-Coupling | Long Reducing Cam & Groove Adapter | Type CXA | 3" Coupler x 4" Adapter | Hard Coat Aluminum | Buna-N Seal

70263040 (30CX40A LONG) by PT-Coupling | Long Reducing Cam & Groove Coupler | Type CXA | 3" Coupler x 4" Adapter | Hard Coat Aluminum | Buna-N Seal

Save $57.59

$155.15

$155.15 - $155.15

$155.15

$97.56

$97.56 - $97.56

$97.56

PT Coupling
Long Reducing Cam & Groove (Camlock) Adapter | Type CXA | Coupler x Adapter | Hard Coat Aluminum | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 70263040 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	3in Female Cam & Groove, 4in Male Cam & Groove
Material(s):	Hard Coat Aluminum
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance. Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products. Made in the USA

Part Name	Item #	Coupler Size	Adapter Size	Max. Allowable Working Press. (PSI)*
15CX20A LONG	70261520	1-1/2"	2"	250 PSI
20CX15A LONG	70262015	2"	1-1/2"	250 PSI
20CX30A LONG	70262030	2"	3"	200 PSI
30CX15A LONG	70263015	3"	1-1/2"	200 PSI
30CX20A LONG	70263020	3"	2"	200 PSI
30CX40A LONG	70263040	3"	4"	150 PSI
40CX30A LONG	70264030	4"	3"	150 PSI
60CX40A LONG	70266040	6"	4"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
