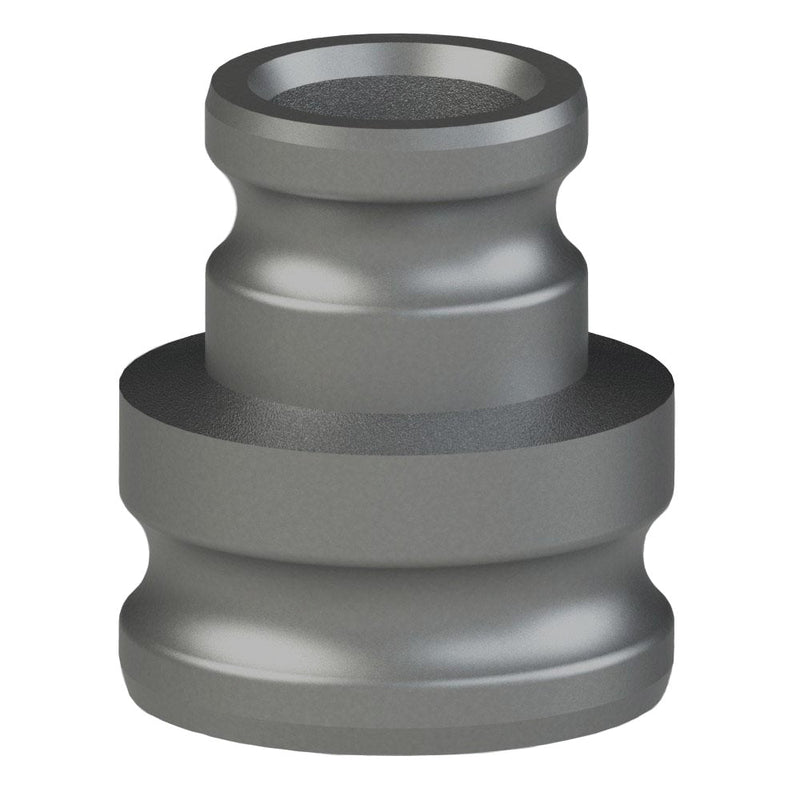

70283030 (SA30X30) by PT-Coupling | Cam & Groove Adapter | Spool Adapter | Type SA | 3" Adapter x 3" Adapter | Hard Coat Aluminum

Save $42.58

$114.73

$114.73 - $114.73

$114.73

$72.15

$72.15 - $72.15

$72.15

PT Coupling
Cam & Groove (Camlock) Adapter | Spool Adapter | Type SA | Adapter x Adapter | Hard Coat Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 70283030 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	3in Male Cam & Groove, 3in Male Cam & Groove, Some Ends Match
Material(s):	Hard Coat Aluminum

Features & Applications:
This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance. Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products. Made in the USA

Part Name	Item #	Adapter Size	Adapter Size	Max. Allowable Working Press. (PSI)*
SA10X10	70281010	1"	1"	250 PSI
SA10X15	70281015	1"	1-1/2"	250 PSI
SA15X15	70281515	1-1/2"	1-1/2"	250 PSI
SA20X20	70282020	2"	2"	250 PSI
SA20X25	70282025	2"	2-1/2"	200 PSI
SA20X30	70282030	2"	3"	200 PSI
SA30X30	70283030	3"	3"	200 PSI
SA30X40	70283040	3"	4"	150 PSI
SA40X40	70284040	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.

Shop Parts by PT-Coupling
