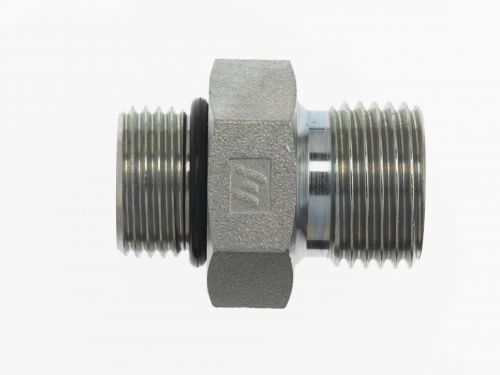

7062-16-12 by Brennan Inc. | -16 Male O-Ring Boss x -12 Male BSPP | Straight | Steel

7062-16-12 by Brennan Inc. | -16 Male O-Ring Boss x -12 Male BSPP | Straight | Steel

$17.64 - $17.64
$17.64
$22.39
$22.39 - $22.39
$22.39

Brennan Inc.
Conversion Adapters: Male O-Ring Boss x Male BSPP Straight - 7062 Series
Specifications for Variant SKU: 7062-16-12 Brennan
Shape (Orientation): Straight
Ends Configuration: 1in Male O-Ring Boss, 3/4in Male BSPP
Material(s): Steel
Part Number Material B1SAE ORB B2BSPP B1Drill B2Drill LLength CHex
7062-16-12 Steel 1-5/16-12" 3/4-14" 21.40mm 16.70mm 44.50mm 38.00mm
7062-16-16 Steel 1-5/16-12" 1-11" 21.40mm 21.40mm 46.50mm 41.00mm
7062-20-16 Steel 1-5/8-12" 1-11" 27.40mm 20.00mm 51.50mm 47.60mm
7062-20-20 Steel 1-5/8-12" 1-1/4-11" 27.40mm 30.00mm 54.70mm 50.00mm
7062-24-20 Steel 1-7/8-12" 1-1/4-11" 33.30mm 28.60mm 48.80mm 54.00mm
7062-24-24 Steel 1-7/8-12" 1-1/2-11" 33.30mm 33.30mm 57.00mm 55.00mm
ª_x0001_
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
