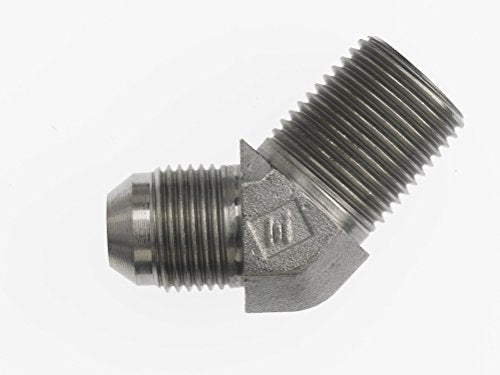

7100-16-16-FG by Brennan Inc. | -16 Male JIC x -16 Male BSPT | 45° Elbow | Forged Steel

7100-16-16-FG by Brennan Inc. | -16 Male JIC x -16 Male BSPT | 45° Elbow | Forged Steel

$47.69 - $47.69
$47.69
$60.51
$60.51 - $60.51
$60.51

Brennan Inc.
Conversion Adapters: 7100 - Male JIC x Male BSPT 45° Elbow
Specifications for Variant SKU: 7100-16-16-FG Brennan
Shape (Orientation): 45 Degree
Ends Configuration: 1in Male JIC, 1in Male BSPT
Material(s): Steel
Part Number Material B1JIC B2BSPT B1Drill B2Drill MLength LLength YFlats
7100-04-02-FG Steel 7/16-20" 1/8-28" 3.80mm 4.50mm 21.50mm 17.00mm 11.00mm
7100-04-04-FG Steel 7/16-20" 1/4-19" 4.40mm 7.00mm 20.70mm 22.00mm 14.00mm
7100-06-04-FG Steel 9/16-18" 1/4-19" 7.10mm 7.50mm 21.00mm 22.00mm 14.10mm
7100-06-06-FG Steel 9/16-18" 3/8-19" 7.50mm 10.30mm 22.10mm 24.10mm 19.00mm
7100-08-06-FG Steel 3/4-16" 3/8-19" 9.90mm 10.30mm 25.00mm 24.00mm 19.00mm
7100-08-08-FG Steel 3/4-16" 1/2-14" 9.60mm 12.00mm 28.00mm 29.50mm 22.00mm
7100-10-08-FG Steel 7/8-14" 1/2-14" 12.30mm 13.50mm 28.00mm 30.00mm 22.00mm
7100-12-12-FG Steel 1-1/16-12" 3/4-14" 15.50mm 18.30mm 32.50mm 30.50mm 27.00mm
7100-16-16-FG Steel 1-5/16" 1-11" 21.50mm 22.00mm 37.40mm 37.60mm 33.00mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
