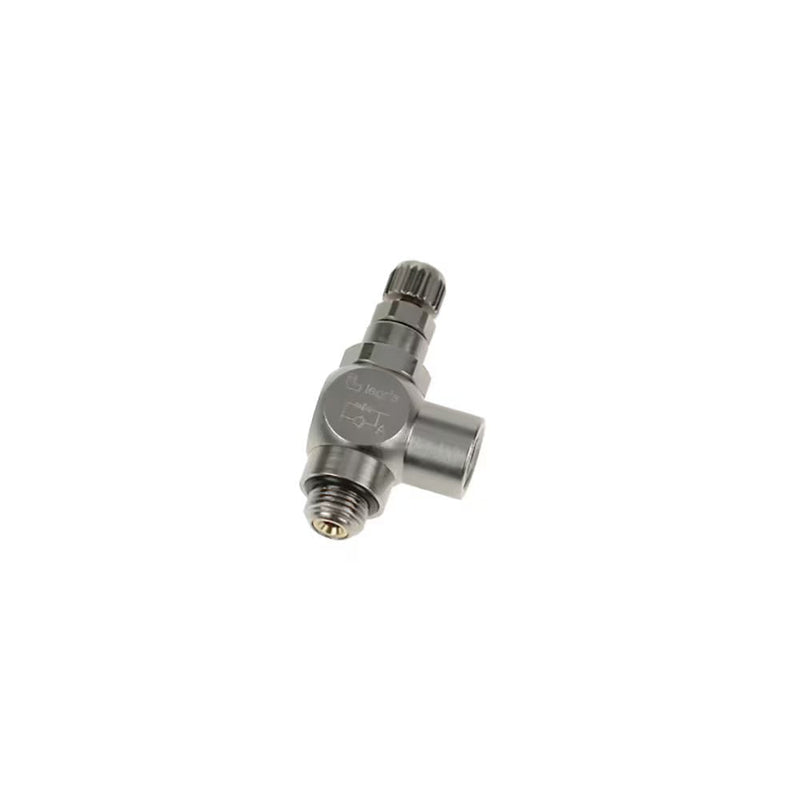

7190 10 10 by Parker | Legris Miniature Flow Regulator Exhaust | 1/8" Male/Female BSPP Thread | 13 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 10

7190 10 10 by Parker | Legris Miniature Flow Regulator Exhaust | 1/8" Male/Female BSPP Thread | 13 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $34.00 Save $34.00
$467.47
$467.47 - $467.47
$467.47
$433.47
$433.47 - $433.47
$433.47

by Parker Hannifin
Flow Control Regulators:7190 Miniature Flow Regulator Exhaust, Male/Female BSPP and Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 7190 10 10 Parker | 10 |
Series: 7190 Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number C E E1 F H (max) H (min) J L Kg
7190 19 19 M5x0.8 4 mm 4 mm 8 mm 29 mm 24 mm 10 mm 11 mm .012 Kg
7190 10 10 1/8" 5 mm 8 mm 13 mm 44 mm 39 mm 15 mm 17 mm .044 Kg
