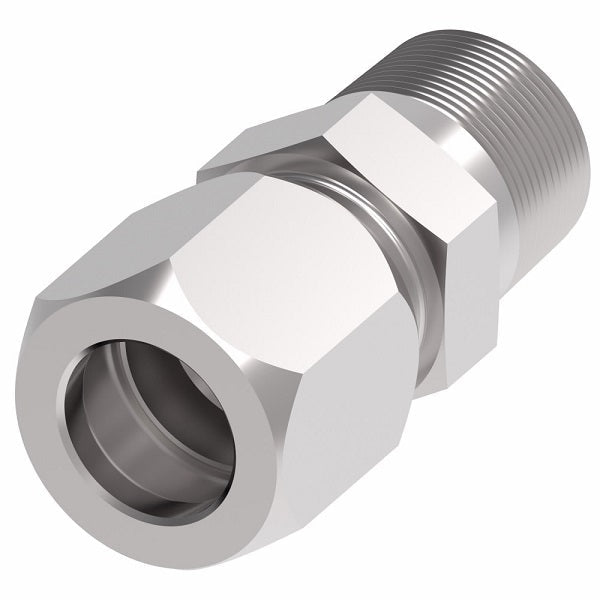

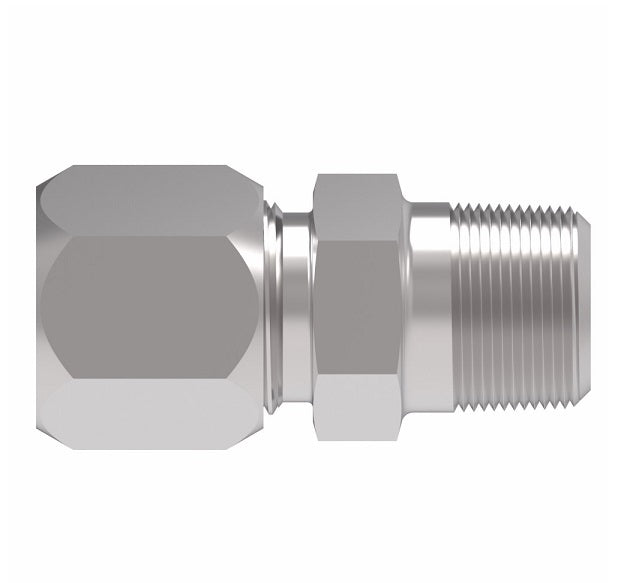

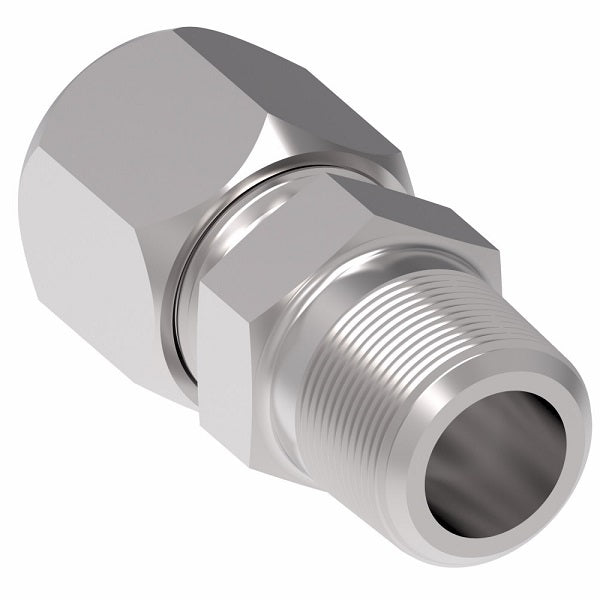

7205X12X8 Ermeto by Danfoss | 7000 Series | Male Connector | 3/4" Male NPTF x 3/4" Tube OD | Steel
7205X12X8 Ermeto by Danfoss | 7000 Series | Male Connector | 3/4" Male NPTF x 3/4" Tube OD | Steel
7205X12X8 Ermeto by Danfoss | 7000 Series | Male Connector | 3/4" Male NPTF x 3/4" Tube OD | Steel
7205X12X8 Ermeto by Danfoss | 7000 Series | Male Connector | 3/4" Male NPTF x 3/4" Tube OD | Steel

7205X12X8 Ermeto by Danfoss | 7000 Series | Male Connector | 3/4" Male NPTF x 3/4" Tube OD | Steel

$17.51 - $17.51
$17.51
$17.51 - $17.51
$17.51

Ermeto by Danfoss
Male Connector Adapter
Male NPTF x Tube
Straight

Ermeto Fittings (7000 Series) are especially designed for making leak-proof tube connections. This Fitting will effectively withstand high pressure, severe vibration and extreme temperature. No special tools are needed for assembly. Simply cut tube square, preset sleeve on tubing and assemble.
Specifications for Variant SKU: 7205X12X8 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPTF, 3/4in Tube Compression
Material(s): Steel
Specifications:
  • Ref. SAE No. 080102
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Male Pipe Thread Hex C D1 D Opt. L
7205X2 B7205X2 1/8" 1/8" 7/16" 0.093" 0.188" 1.04"
7205X2X4 B7205X2X4 1/8" 1/4" 9/16" 0.093" 0.281" 1.25"
7205X3 B7205X3 3/16" 1/8" 7/16" 0.125" 0.188" 1.09"
7205X4 B7205X4 1/4" 1/8" 1/2" 0.203" 0.188" 1.12"
7205X4X4 B7205X4X4 1/4" 1/4" 9/16" 0.203" 0.281" 1.32"
7205X4X6 B7205X4X6 1/4" 3/8" 3/4" 0.203" 0.406" 1.33"
7205X4X8 B7205X4X8 1/4" 1/2" 7/8" 0.203" 0.531" 1.58"
7205X5 B7205X5 5/16" 1/8" 9/16" 0.234" 0.188" 1.12"
7205X5X4 B7205X5X4 5/16" 1/4" 9/16" 0.234" 0.281" 1.32"
7205X6 B7205X6 3/8" 1/4" 5/8" 0.281" 0.281" 1.34"
7205X6X2 B7205X6X2 3/8" 1/8" 5/8" 0.281" 0.188" 1.15"
7205X6X6 B7205X6X6 3/8" 3/8" 3/4" 0.281" 0.406" 1.35"
7205X6X8 B7205X6X8 3/8" 1/2" 7/8" 0.281" 0.531" 1.60"
7205X8 B7205X8 1/2" 3/8" 13/16" 0.422" 0.406" 1.44"
7205X8X4 B7205X8X4 1/2" 1/4" 13/16" 0.422" 0.281" 1.44"
7205X8X8 - 1/2" 1/2" 7/8" 0.422" 0.531" 1.69"
7205X8X12 B7205X8X12 1/2" 3/4" 1-1/8" 0.422" 0.719" 1.76"
7205X10 B7205X10 5/8" 1/2" 15/16" 0.500" 0.531" 1.75"
7205X10X6 B7205X10X6 5/8" 3/8" 15/16" 0.500" 0.406" 1.56"
7205X12 B7205X12 3/4" 1/2" 1-1/8" 0.656" 0.531" 1.88"
7205X12X8 B7205X12X8 3/4" 3/4" 1-1/8" 0.656" 0.719" 1.88"
7205X14 B7205X14 7/8" 3/4" 1-1/4" 0.718" 0.719" 1.88"
7205X16 B7205X16 1" 1" 1-3/8" 0.875" 0.938" 2.07"
7205X16X12 - 1" 3/4" 1-3/8" 0.875" 0.719" 1.88"
7205X20 B7205X20 1-1/4" 1-1/4" 1-11/16" 1.093" 1.250" 2.18"
7205X24 B7205X24 1-1/2" 1-1/2" 2" 1.344" 1.500" 2.28"
