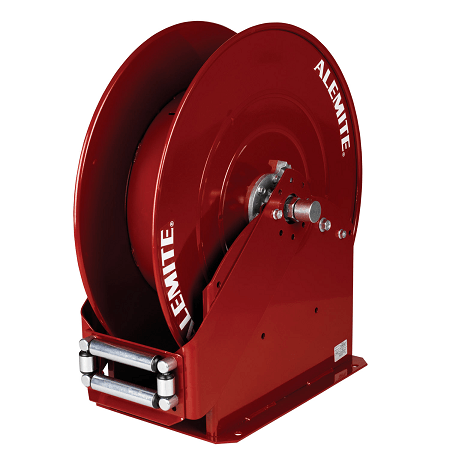

7340 by Alemite | High Capacity Reel | Grease | Bare Reel | Reel Inlet: 3/8" Male NPTF | Delivery Hose Outlet: 3/8" Female NPSM Swivel | Max Pressure: 6000 PSI

7340 by Alemite | High Capacity Reel | Grease | Bare Reel | Reel Inlet: 3/8" Male NPTF | Delivery Hose Outlet: 3/8" Female NPSM Swivel | Max Pressure: 6000 PSI

Save $13.04 Save $13.04
$1,222.74
$1,222.74 - $1,222.74
$1,222.74
$1,209.70
$1,209.70 - $1,209.70
$1,209.70

PRODUCT DESCRIPTION

Alemite High Capacity Reel - Grease
Specifications for Variant SKU: 7340 Alemite
Applications,
  • Alemite High Capacity Reels offer high volume delivery in the most extreme outdoor conditions. The high capacity flow passage reduces fill rate time, improving efficiency and helping reduce cost.
Features,
  • Superior Performance - Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time.
  • Anti-Lockout Design - Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
  • Corrosion Resistant - Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments. Sealed rollers eliminate contamination which can bind hose guide rollers.
  • Easy Installation and Maintenance - Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy. Outlet port swivel nut makes installing delivery hose quick and easy.
  • Strong and Stable - Double arm design provides extra support for a larger hose during use. Four corner bolt hole pattern on outside of base provides extra stability.
  • Compatibility - Oil, air, water, fuel
  • INCLUDED ITEMS,
  • Hose Reel, Delivery Hose and Hose Stop

Part Number Bare Reel Max Pressure Delivery Hose
Specification		 Reel Inlet Delivery Hose Outlet Weight
8080-A 7340 6,000 PSI 3/8" x 80' (317870-80) 3/8" NPTF(m) 1/4" NPTF(f) 150 Lb.
7340 7340 6,000 PSI NA 3/8" NPTF(m) 1/4" NPTF(f) 123 Lb.

Alemite | SKF

Alemite | SKF

Alemite products have quietly been a major part of many of the world’s
essential industries. Manufacturing, construction, agriculture, automotive,
pulp and paper, aircraft maintenance, marine and mining industries have
benefitted from the innovations introduced since its founding in 1918.
