7371 by Alemite | Narrow Double Post Reels | Oil | Bare Reel | Union Inlet: 1/2" Male NPSM | Reel Outlet: 1/2" Female NPSM Swivel | Max Pressure: 1800 PSI

7371 by Alemite | Narrow Double Post Reels | Oil | Bare Reel | Union Inlet: 1/2" Male NPSM | Reel Outlet: 1/2" Female NPSM Swivel | Max Pressure: 1800 PSI

Save $660.23 Save $660.23
$1,480.44
$1,480.44 - $1,480.44
$1,480.44
$820.21
$820.21 - $820.21
$820.21

PRODUCT DESCRIPTION

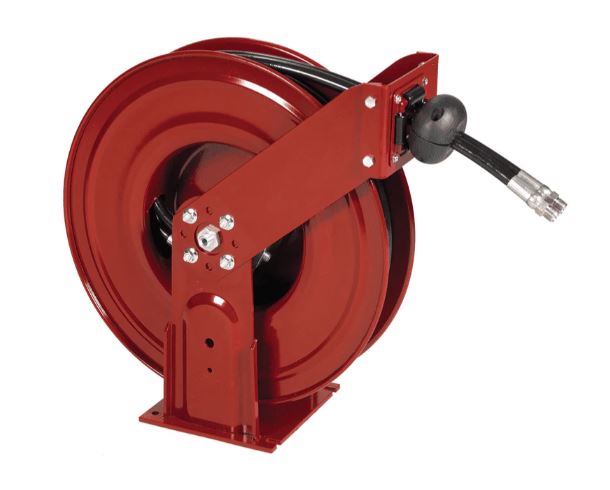

Alemite Narrow Double Post Reels - Oil
Specifications for Variant SKU: 7371 Alemite
Applications,
  • Alemite Narrow Double Post Reels provide the rugged, reliable performance of an Alemite Reel, with a narrower design to fully optimize space efficiency. The dual arm design provides increased strength and stability in demanding off road applications.
Features,
  • Narrow Design - 8.5" wide, for better space utilization.
  • Superior Performance - Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time.
  • Anti-Lockout Design - Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
  • Corrosion Resistant - Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments.
  • Easy Installation and Maintenance - Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy.
  • Durable - Heavy metal arbor and dual arm design withstand extreme stress and eliminate breakage associated with non-metal and light weight metal arbors.
  • Adjustable and Versatile - 5 position guide arm allows hose to release at an optimum position. Narrow design allows for efficient use of available space.
  • Compatibility - Oil, grease, air, water, fuel, hydraulic fluid
  • INCLUDED ITEMS,
  • Hose Reel, Hose, Hose Stop, Union & Connecting Hose
Dimensions,

Part Number Bare Reel Max Pressure Delivery Hose
Specification		 Reel Inlet Delivery Hose Outlet Weight
8081-D 7371 1,800 PSI 1/2" x 50' (317813-50) 1/2" NPSM(m) 1/2" NPTF(m) 74 Lb.
7371 7371 1,800 PSI NA 1/2" NPSM(m) NA 57.2 Lb.
