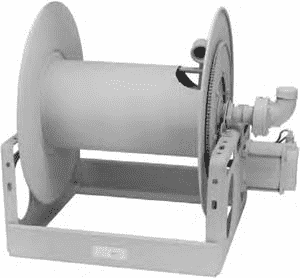

7500 Hannay Air Powered Rewind Reel (A-7528-19-21)

A-7528-19-21 by Hannay | 7500 Series | Air Powered Rewind Reel

$1,877.03 - $1,877.03
$1,877.03
$1,900.41
$1,900.41 - $1,900.41
$1,900.41



7500 Air Powered Rewind Reels To handle single 1" through 1-1/2" I.D. hose.
Specifications for Variant SKU: A-7528-19-21 Hannay
Series: 7500 Series
Applications:
  • Fuel Dispensing
  • Bulk Transfer
  • Suction/Discharge
Features:
  • Heavy-duty reel designed for longer lengths.
  • Chain and sprocket drive powered by a compressed air motor.
  • Power rewind reels with a comet brake.
  • Standard inlet 90 deg. ball bearing swivel joint 1-1/2" female NPT threads and 2" victaulic groove.
  • Standard outlet flanged riser 1-1/2" female NPT threads.
  • Standard inlet, outlet riser and hub assembly are steel.
  • Operate at pressures to 600 psi (41 bar).
  • Temperatures from -60 deg. F to +175 deg. F (-51 deg. C to +79 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1" 1-1/4" 1-1/2"
O.D. (in) 1-9/16" 1-13/16" 2-1/16" A B D E F Crank F Power G H X Y
A-7528-19-21 85' lengths 70' lengths 50' lengths 124 lbs. 25.5" 20" 20.5" 18.75" 32" 33" 21.5" 12.12" 17.5" 16.75"
A-7538-23-24 200' lengths 190' lengths 100' lengths 150 lbs. 35" 29.5" 20.5" 22.75" 41.5" 42.5" 23.5" 12.12" 27" 16.75"
A-7520-25-26 115' lengths 75' lengths 50' lengths 126 lbs. 17" 11.5" 25.5" 24.75" 23.5" 24.5" 27.88" 15.5" 9" 21.75"
A-7528-25-26 200' lengths 135' lengths 100' lengths 143 lbs. 25.5" 20" 25.5" 24.75" 32" 33" 27.88" 15.5" 17.5" 21.75"
A-7522-30-31 190' lengths 160' lengths 100' lengths 138 lbs. 19" 13.5" 25.5" 28.75" 25.5" 26.5" 29.88" 15.5" 11" 21.75"
A-7528-30-31† 285' lengths 260' lengths 160' lengths 151 lbs. 25.5" 20" 25.5" 28.75" 32" 33" 29.88" 15.5" 17.5" 21.75"
A-7526-33-34† 335' lengths 200' lengths 200' lengths 153 lbs. 22.5" 17.5" 31.5" 31.75" 29.25" 30.25" 33.62" 17.75" 15" 27.75"

† Some applications require a clutch/reduction unit.

Hannay Reels

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
