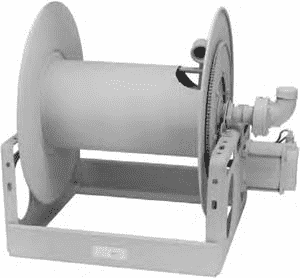

7500 Hannay Hydraulic Powered Rewind Reel (HD-7538-23-24)

HD-7538-23-24 by Hannay | 7500 Series | Hydraulic Powered Rewind Reel

Save $1,188.17 Save $1,188.17
$2,970.42
$2,970.42 - $2,970.42
$2,970.42
$1,782.25
$1,782.25 - $1,782.25
$1,782.25



7500 Hydraulic Powered Rewind Reels To handle single 1" through 1-1/2" I.D. hose.
Specifications for Variant SKU: HD-7538-23-24 Hannay
Series: 7500 Series
Applications:
  • Fuel Dispensing
  • Bulk Transfer
  • Suction/Discharge
Features:
  • Heavy-duty reel designed for longer lengths.
  • Chain and sprocket drive powered by a hydraulic motor.
  • Power rewind reels with a comet brake.
  • Standard inlet 90 deg. ball bearing swivel joint 1-1/2" female NPT threads and 2" victaulic groove.
  • Standard outlet flanged riser 1-1/2" female NPT threads.
  • Standard inlet, outlet riser and hub assembly are steel.
  • Operate at pressures to 600 psi (41 bar).
  • Temperatures from -60 deg. F to +175 deg. F (-51 deg. C to +79 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1" 1-1/4" 1-1/2"
O.D. (in) 1-9/16" 1-13/16" 2-1/16" A B D E F Crank F Power G H X Y
HD-7528-19-21 85' lengths 70' lengths 50' lengths 124 lbs. 25.5" 20" 20.5" 18.75" 32" 33" 21.5" 12.12" 17.5" 16.75"
HD-7538-23-24 200' lengths 190' lengths 100' lengths 150 lbs. 35" 29.5" 20.5" 22.75" 41.5" 42.5" 23.5" 12.12" 27" 16.75"
HD-7520-25-26 115' lengths 75' lengths 50' lengths 126 lbs. 17" 11.5" 25.5" 24.75" 23.5" 24.5" 27.88" 15.5" 9" 21.75"
HD-7528-25-26 200' lengths 135' lengths 100' lengths 143 lbs. 25.5" 20" 25.5" 24.75" 32" 33" 27.88" 15.5" 17.5" 21.75"
HD-7522-30-31 190' lengths 160' lengths 100' lengths 138 lbs. 19" 13.5" 25.5" 28.75" 25.5" 26.5" 29.88" 15.5" 11" 21.75"
HD-7528-30-31† 285' lengths 260' lengths 160' lengths 151 lbs. 25.5" 20" 25.5" 28.75" 32" 33" 29.88" 15.5" 17.5" 21.75"
HD-7526-33-34† 335' lengths 200' lengths 200' lengths 153 lbs. 22.5" 17.5" 31.5" 31.75" 29.25" 30.25" 33.62" 17.75" 15" 27.75"

† Some applications require a clutch/reduction unit.
