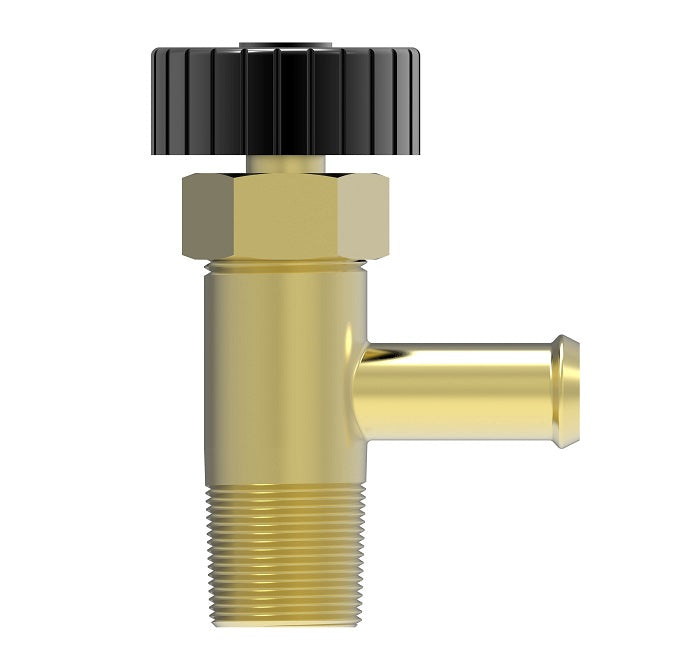

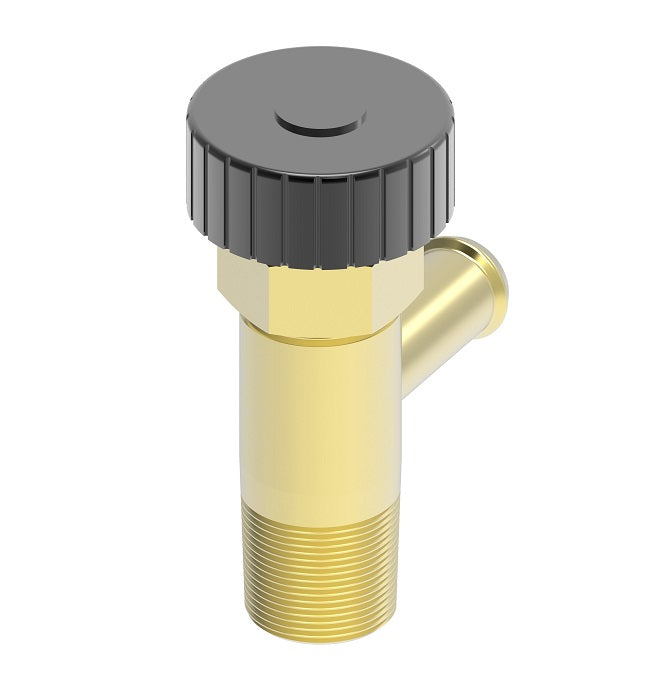

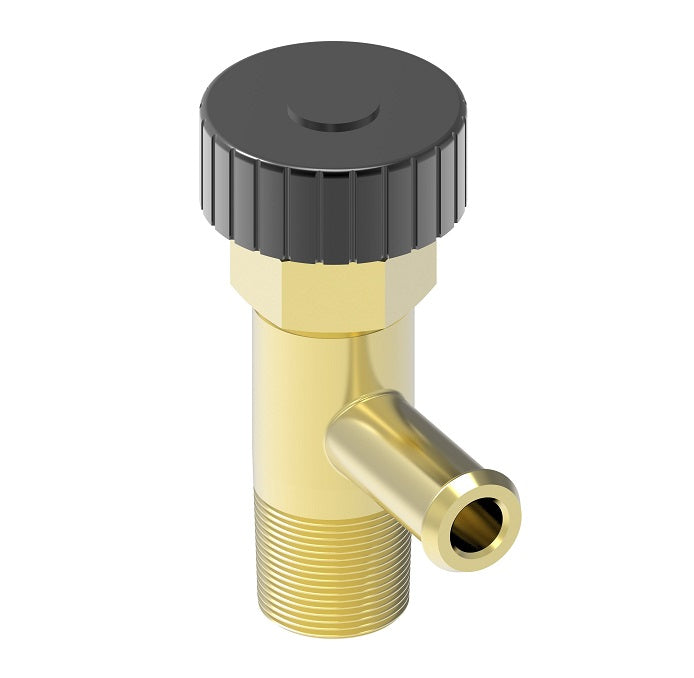

7504 by Danfoss | Truck Valve | 90° Elbow | 5/8" Hose Barb x 3/8" Male NPTF | Brass
7504 by Danfoss | Truck Valve | 90° Elbow | 5/8" Hose Barb x 3/8" Male NPTF | Brass
7504 by Danfoss | Truck Valve | 90° Elbow | 5/8" Hose Barb x 3/8" Male NPTF | Brass
7504 by Danfoss | Truck Valve | 90° Elbow | 5/8" Hose Barb x 3/8" Male NPTF | Brass

7504 by Danfoss | Truck Valve | 90° Elbow | 5/8" Hose Barb x 3/8" Male NPTF | Brass

$26.14 - $26.14
$26.14
$26.14 - $26.14
$26.14

Aeroquip® by Danfoss
Truck Valve - 90° Elbow
Specifications for Variant SKU: 7504 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Hose Barb, 3/8in Male NPTF
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Used extensively in the trucking industry for cooling and fuel line applications.
Material:
  • Forged brass bodies, steel handles.
  • Buna-N o-ring sealed.
Pressure:
  • 200 psi Maximum.
Temperature Range:
  • -40°F to +250°F
    (-40°C to +121°C)
Conformance:
  • Designed for trucking use. Not intended for natural gas, LPG, nuclear or aircraft applications.
Brass
Part Number 		End Type
7502 5/8" Hose Barb x 1/2" Male NPTF
7504 5/8" Hose Barb x 3/8" Male NPTF
7506 3/8" Hose Barb x 3/8" Male NPTF
7508 1/2" Female NPTF x 1/2" Male NPTF
7509 3/8" Female NPTF x 3/8" Male NPTF
