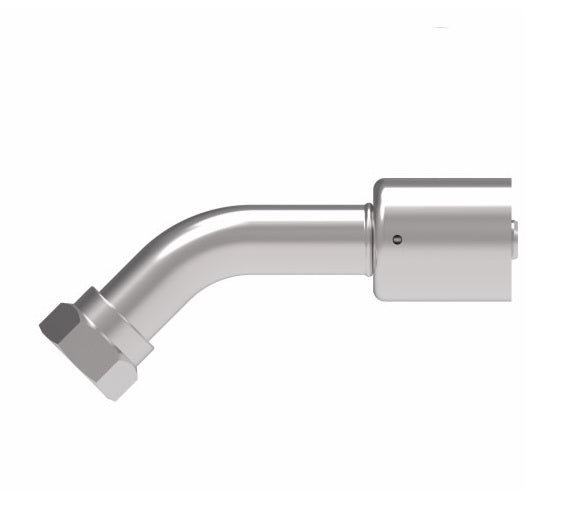

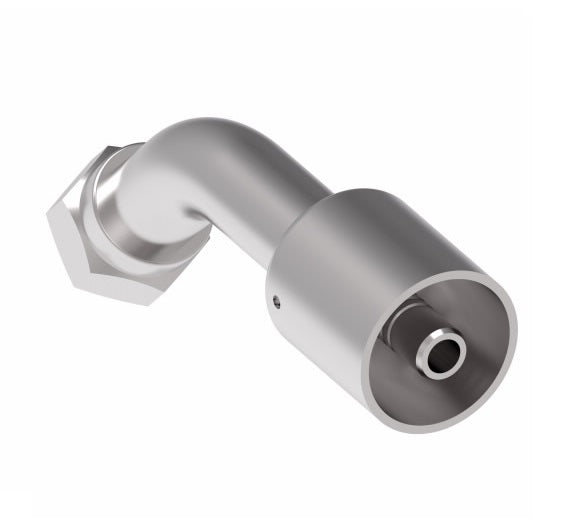

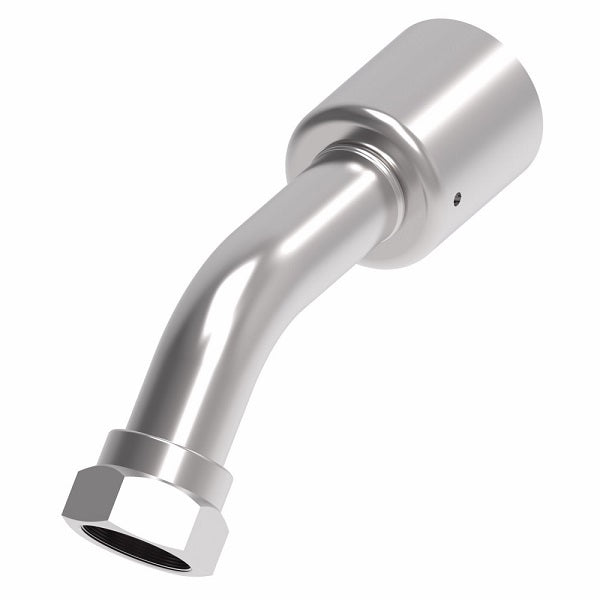

75708E-W49 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 45° Elbow Crimp Fitting | -08 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel
75708E-W49 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 45° Elbow Crimp Fitting | -08 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel
75708E-W49 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 45° Elbow Crimp Fitting | -08 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel
75708E-W49 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 45° Elbow Crimp Fitting | -08 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel

75708E-W49 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 45° Elbow Crimp Fitting | -08 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel

$19.77 - $19.77
$19.77
$19.77 - $19.77
$19.77

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female Bumped Tube O-Ring Swivel Tube - 45° Elbow
Specifications for Variant SKU: 75708E-W49 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): 45 Degree
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Thread Size Length
A		 Run
B		 Hose Cut-Off
Factor		 Hex
F
75706E-W47 5/16" 3/8" 5/8-18 3.51" 0.68" 2.25" 3/4"
75708E-W49 13/32" 1/2" 3/4-16 3.63" 1.05" 2.25" 7/8"
75710E-W51 1/2" 5/8" 7/8-14 3.65" 1.19" 2.50" 1-1/16"
75712E-W51 5/8" 5/8" 7/8-14 4.00" 1.29" 2.75" 1-1/16"
75712E-W53 5/8" 3/4" 1-1/16-14 3.84" 0.94" 2.50" 1-1/4"

Note: Drawings may differ from actual parts.
