75710E-Y49 Weatherhead by Danfoss | 757 'E' Series | Hose Splicer with R134a Low Service Port Crimp Fitting | 1/2" Hose ID x 1/2" Hose ID | Steel
75710E-Y49 Weatherhead by Danfoss | 757 'E' Series | Hose Splicer with R134a Low Service Port Crimp Fitting | 1/2" Hose ID x 1/2" Hose ID | Steel
75710E-Y49 Weatherhead by Danfoss | 757 'E' Series | Hose Splicer with R134a Low Service Port Crimp Fitting | 1/2" Hose ID x 1/2" Hose ID | Steel
75710E-Y49 Weatherhead by Danfoss | 757 'E' Series | Hose Splicer with R134a Low Service Port Crimp Fitting | 1/2" Hose ID x 1/2" Hose ID | Steel

75710E-Y49 Weatherhead by Danfoss | 757 'E' Series | Hose Splicer with R134a Low Service Port Crimp Fitting | 1/2" Hose ID x 1/2" Hose ID | Steel

$47.99 - $47.99
$47.99
$47.99 - $47.99
$47.99

Weatherhead by Danfoss

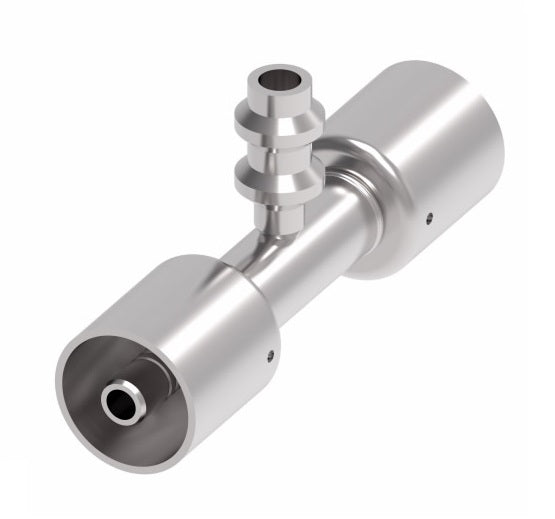

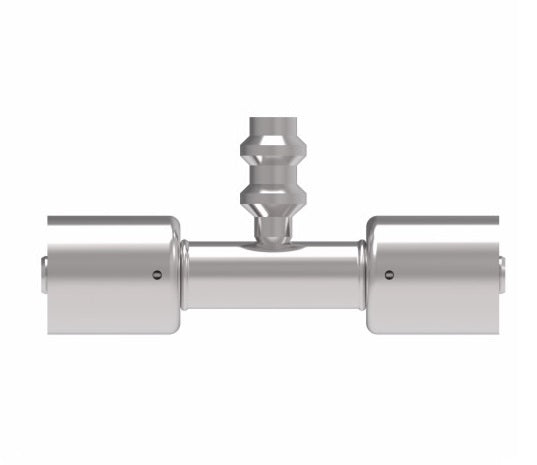

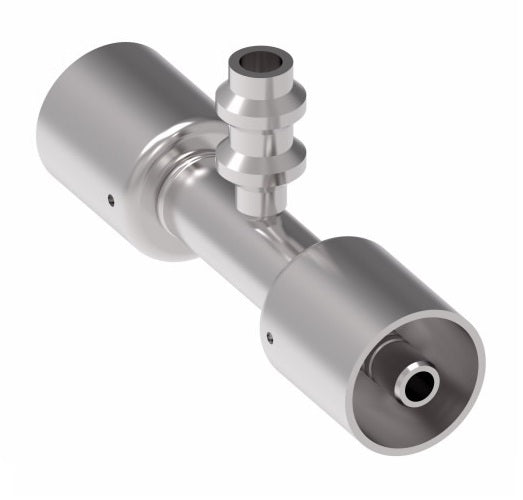

Coll-O-Crimp 757 'E' Series Crimp Fitting - Hose Splicer with R134a Service Port - Straight
Specifications for Variant SKU: 75710E-Y49 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 1/2in Hose Barb, Some Ends Match
Material(s): Steel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Hose I.D. Port Length
A		 Run
R		 Hose Cut-Off
Factor
75706E-Y47 5/16" 5/16" High Service Port 5.42" 2.62" 1.50"
75708E-Y48 13/32" 13/32" High Service Port 5.42" 2.62" 1.50"
75710E-Y49 1/2" 1/2" Low Service Port 5.42" 2.62" 1.63"
75712E-Y50 5/8" 5/8" Low Service Port 5.62" 2.62" 1.75"

Note: Drawings may differ from actual parts.
