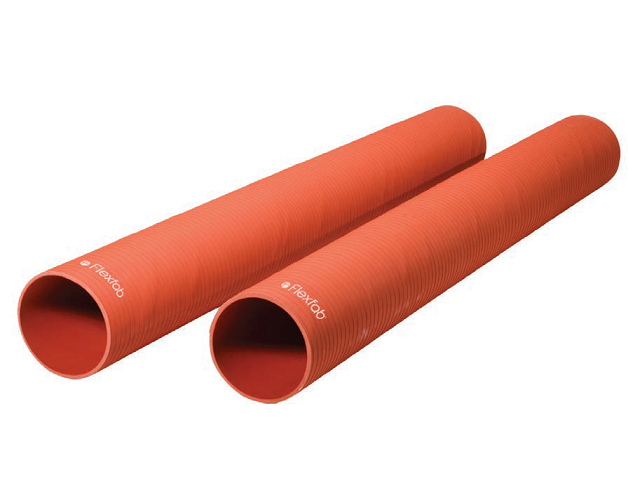

7703-200 FlexFab Series 7703 6-ply Heavyduty Fiberglass Reinforced Turbo Sleeve - 2.00" ID - 2.63" OD - 3ft

7703-200 by FlexFab | Series 7703 | 6-ply Heavyduty Fiberglass Reinforced Turbo Sleeve | 2.00" ID | 2.63" OD | 3ft Length

Save $13.68

$136.83

$136.83 - $136.83

$136.83

$123.15

$123.15 - $123.15

$123.15

Flexfab Industrial Hose - Series 7703 - Heavy Duty Fiberglass Reinforced Turbo Sleeves

Package Quantity: 3 FT

Quantity

Specifications for Variant SKU: 7703-200 Flexfab
Series:	Series 7703
Hose Color(s):	Orange
Internal Diameter:	2.00in
Outer Diameter:	2.63in
Tubing Construction:	Silicone
Cover Construction:	Silicone

Overview:
Comes in 3' lengths
Construction:
6-Ply Silicone Coated Fiberglass Fabric Reinforcement
Specifications:
Temperature range is -65°F (-54°C) to +500°F (+260°C) Wall thickness is .140"/.183"
Applications:
For connection between the turbocharger and the engine (where no vibration is present) Resists chemicals, steam, ozone, coolants, and aging conditions normally found in the engine environment

Part Number	Inside Diameter	Outside Diameter	Burst Pressure(PSI)	Maximum OperatingPressure - (PSI)	Weight	Clamp
7703-200	2.00"	2.63"	210 PSI	70 PSI	1.4 lbs./ft	FLX2583-0212 or FLX2584-0262
7703-250	2.50"	3.13"	180 PSI	60 PSI	1.6 lbs./ft	FLX2583-0262 or FLX2584-0312
7703-300	3.00"	3.63"	150 PSI	50 PSI	1.8 lbs./ft	FLX2583-0312 or FLX2584-0362
7703-350	3.50"	4.13"	120 PSI	40 PSI	2.0 lbs./ft	FLX2583-0375 or FLX2584-0412
7703-400	4.00"	4.63"	90 PSI	30 PSI	2.2 lbs./ft	FLX2583-0400 or FLX2584-0462

*Specifications for reference only. Specific test data available on request.

The 7703 series turbo sleeves were designed to handle higher pressure standards in certain applications. The below chart references the pressure details between the standard turbo sleeves 7701 series and the heavy duty version 7703 series.
Flexfab Turbo Sleeve Comparison Chart
FLX7701 Series Turbo Sleeves
Inside Diameter	7701-200	7701-250	7701-300	7701-350	7701-400
Operating Pressure PSIG	35	30	25	20	15
Burst Pressure PSIG	105	90	75	60	45
FLX7703 Series Heavy Duty Turbo Sleeves
Inside Diameter	7703-200	7703-250	7703-300	7703-350	7703-400
Operating Pressure PSIG	70	60	50	40	30
Burst Pressure PSIG	210	180	150	120	90

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
