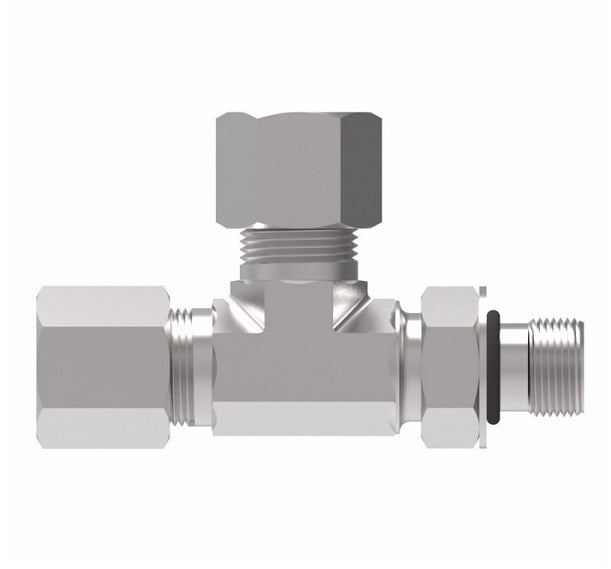

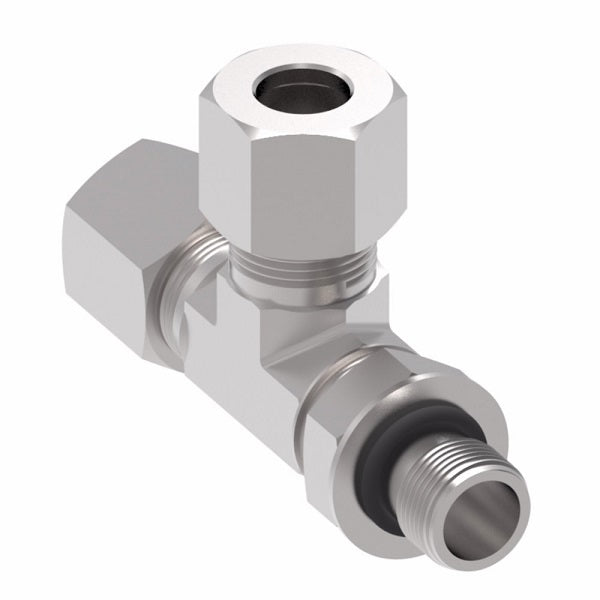

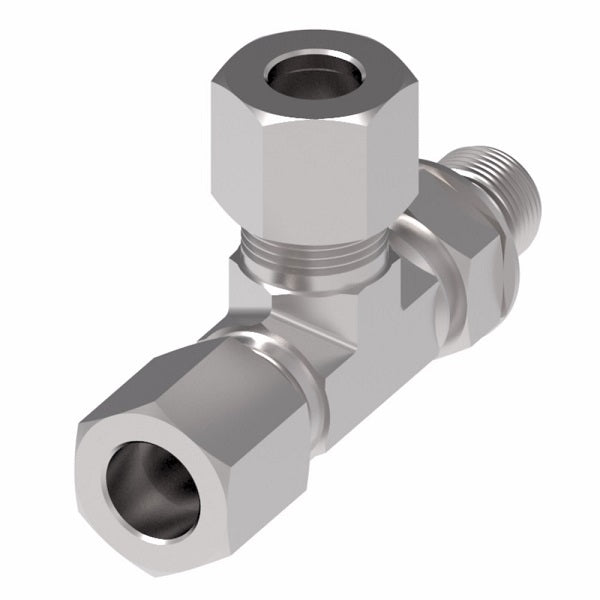

7716X4 Ermeto by Danfoss | 7000 Series | Straight Thread ORB Run/Tube Tee | 1/4" Male O-Ring Boss x 1/4" Tube OD x 1/4" Tube OD | Steel
7716X4 Ermeto by Danfoss | 7000 Series | Straight Thread ORB Run/Tube Tee | 1/4" Male O-Ring Boss x 1/4" Tube OD x 1/4" Tube OD | Steel
7716X4 Ermeto by Danfoss | 7000 Series | Straight Thread ORB Run/Tube Tee | 1/4" Male O-Ring Boss x 1/4" Tube OD x 1/4" Tube OD | Steel
7716X4 Ermeto by Danfoss | 7000 Series | Straight Thread ORB Run/Tube Tee | 1/4" Male O-Ring Boss x 1/4" Tube OD x 1/4" Tube OD | Steel

7716X4 Ermeto by Danfoss | 7000 Series | Straight Thread ORB Run/Tube Tee | 1/4" Male O-Ring Boss x 1/4" Tube OD x 1/4" Tube OD | Steel

$17.72 - $17.72
$17.72
$17.72 - $17.72
$17.72

Ermeto by Danfoss
Straight Thread ORB Run/Tube Tee
Male O-Ring Boss x Tube x Tube

Ermeto Fittings (7000 Series) are especially designed for making leak-proof tube connections. This Fitting will effectively withstand high pressure, severe vibration and extreme temperature. No special tools are needed for assembly. Simply cut tube square, preset sleeve on tubing and assemble.
Specifications for Variant SKU: 7716X4 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male O-Ring Boss, 1/4in Tube Compression, 1/4in Tube Compression, Some Ends Match
Material(s): Steel
Specifications:
  • Ref. SAE No. 080428
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Port Size D M N Across
Flats
7716X4 B7716X4 1/4" 1/4" 0.203" 0.89" 1.03" 7/16"
7716X6 B7716X6 3/8" 3/8" 0.281" 1.05" 1.25" 9/16"
7716X8 B7716X8 3/4" 3/4" - - - -
