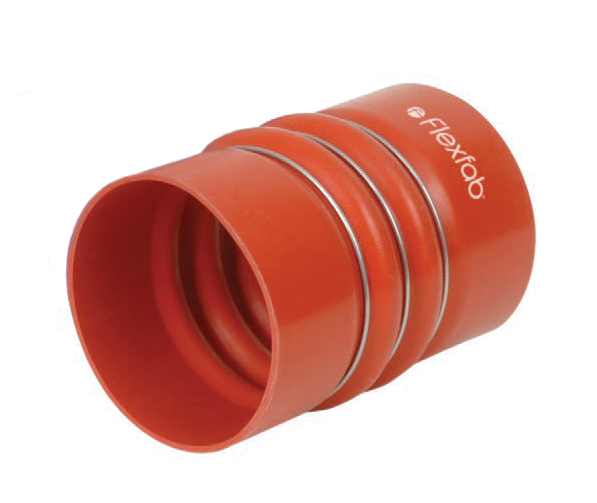

7717 FlexFab 4-ply Charge Air Connector (CAC) Hot Side - 3.50" ID - 3.73" OD - 7.50"

7717 by FlexFab | 4-ply Charge Air Connector (CAC) Hot Side | 3.50" ID | 3.73" OD | 7.50" Overall Length

Save $2.96 Save $2.96
$29.56
$29.56 - $29.56
$29.56
$26.60
$26.60 - $26.60
$26.60

Flexfab Industrial Hose - Charge Air Connector (CAC) Hot Side & Cold Side
Specifications for Variant SKU: 7717 Flexfab
Shape (Orientation): Straight
Material(s): Silicone Coated Fabric, Stainless Steel
Construction:
  • Hot Side:
    • 4-Ply Silicone Coated Meta-Aramid Fabric with Stainless Steel Pressure Retention Rings
  • Cold Side:
    • 3-Ply Silicone Coated Polyester Fabric with Stainless Steel Pressure Retention Rings
Specifications:
  • Hot Side:
    • Temperature range is -65°F (-54°C) to +500°F (+260°C)
    • Wall thickness is .085/.135
  • Cold Side:
    • Temperature range is -65°F (-54°C) to +350°F (+177°C)
    • Wall thickness is .084/.130
Applications:
  • Hot Side:
    • Used on diesel truck engines to deliver pressurized intake air to the charge air intercooler and intake manifold
  • Cold Side:
    • Used on diesel truck engines to deliver pressurized intake air to the charge air intercooler and intake manifold
Part Number Inside Diameter Outside Diameter Overall Length Convolutes(Humps) Stainless SteelRings Max Operating Pressure - PSI WeightLBS Clamp
Hot Side
7887 2.50" 2.73" 6.00" 2 3 60 PSI 0.5 lbs FLX2583-0250 or FLX2584-0312
7731-0001 3.00" 3.23" 6.00" 2 3 60 PSI 0.5 lbs FLX2583-0300 or FLX2584-0362
7732-0001 3.50" 3.73" 6.00" 2 3 55 PSI 0.5 lbs FLX2583-0350 or FLX2584-0412
7717 3.50" 3.73" 7.50" 2 3 55 PSI 0.5 lbs FLX2583-0350 or FLX2584-0462
7715-0002 4.00" 4.23" 6.00" 2 3 50 PSI 0.5 lbs FLX2583-0400 or FLX2584-0462
7723 4.00" 4.23" 6.00" 1 2 50 PSI 0.5 lbs FLX2583-0400 or FLX2584-0462
1020-0001 4.00" 4.23" 6.50" 2 3 50 PSI 0.5 lbs FLX2583-0400 or FLX2584-0462
7716 4.00" 4.23" 7.00" 2 3 50 PSI 0.6 lbs FLX2583-0400 or FLX2584-0462
7728 4.00" 4.23" 7.50" 2 3 50 PSI 0.6 lbs FLX2583-0400 or FLX2584-0462
7727-0001 4.00" 4.23" 8.00" 2 3 50 PSI 0.7 lbs FLX2583-0400 or FLX2584-0462
7742-0001 4.50" 4.73" 6.00" 2 3 45 PSI 0.5 lbs FLX2583-0450 or FLX2584-0512
7797 5.00" 5.23" 6.00" 2 3 35 PSI 0.5 lbs FLX2583-0500 or FLX2584-0562
Cold Side
7758-0001 3.00" 3.23" 6.00" 2 3 60 PSI 0.5 lbs FLX2583-0300 or FLX2584-0362
7753-0001 3.50" 3.73" 6.00" 2 3 55 PSI 0.5 lbs FLX2583-0350 or FLX2584-0412
7732-0002 4.00" 4.23" 6.00" 2 3 50 PSI 0.5 lbs FLX2583-0400 or FLX2584-0462
7759-0001 4.50" 4.73" 6.00" 2 3 45 PSI 0.5 lbs FLX2583-0450 or FLX2584-0512
*Specifications for reference only. Specific test data available on request.
Flexfab

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
