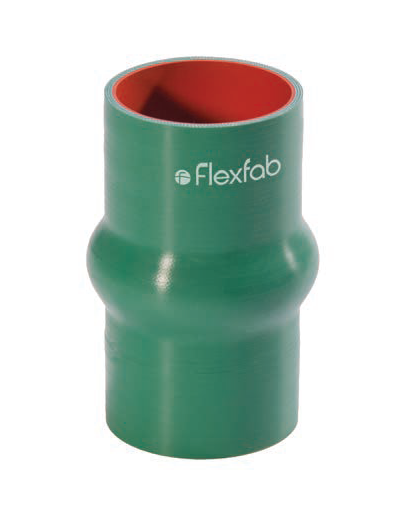

7730-0001 FlexFab 4- Ply Coolant Sleeve - 3.00" ID - 3.23" OD - Green - 6"

7730-0001 by FlexFab | 4- Ply Coolant Sleeve | 3.00" ID | 3.23" OD | Green | 6" Overall Length

Save $4.06

$40.62

$40.62 - $40.62

$40.62

$36.56

$36.56 - $36.56

$36.56

Flexfab Industrial Hose - Specialty Hoses

Quantity

Specifications for Variant SKU: 7730-0001 Flexfab
Hose Color(s):	Green
Internal Diameter:	3.00in
Outer Diameter:	3.23in
Tubing Construction:	Silicone
Cover Construction:	Silicone

Overview:
A. 7730-0001: Coolant Sleeve Specially designed coolant hose for unique applications. Sales should be consulted before use in new applications as pressure ratings are very specific. Hose can also be used for a cold side charge-air-cooler application as well Temperature range is -65°F (-54°C) to +350°F (+177°C) Maximum operating pressure is 30 PSI 4-ply polyester reinforced hose B. 7967: Coolant Bellows Once installed, the hose can handle up to 1.00" of lateral movement in the application Temperature range is -65°F (-54°C) to +350°F (+177°C) Meets or exceeds the operating requirements of SAE J20 R1 Class A Maximum operating pressure is 50 PSI 3-ply polyester reinforced hose C. 7965: Coolant Elbow Used for a 90° coolant connection between pipes Tighter bend radius than most other 90° elbows Temperature range is -65°F (-54°C) to +350°F (+177°C) Meets or exceeds the operating requirements of SAE J20 R1 Class A Maximum operating pressure is 50 PSI 4-ply polyester reinforced hose D. 7902: Charge Air 45° Elbow Used for a 45° hot side charge air connection between pipes Temperature range is -65°F (-54°C) to +450°F (+232°C) Maximum operating pressure is 55 PSI 6-ply meta-aramid reinforced hose

Part Number	Description	Inside Diameter	Outside Diameter	Overall Length	Stainless Steel Rings	Burst Pressure	Weight	Clamp
7730-0001	A. Coolant Sleeve	3.00"	3.23"	6.00"	No	90 PSI	0.5 lbs	FLX2582-0043 FLX2584-0362
7967	B. Coolant Bellow	2.50"	2.82"	8.50"	Yes	150 PSI	0.5 lbs	FLX2582-0040 FLX2584-0312
7965	C. Coolant Elbow	2.50"	2.92"	10.00"	No	150 PSI	0.5 lbs	FLX2582-0040 FLX2584-0312
7902	D. Charge Air 45° Elbow	3.50" / 4.00"	4.17" / 4.67"	8.75"	No	165 PSI	0.5 lbs	FLX2583-0350 FLX2583-0400

*Specifications for reference only. Specific test data available on request.

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
