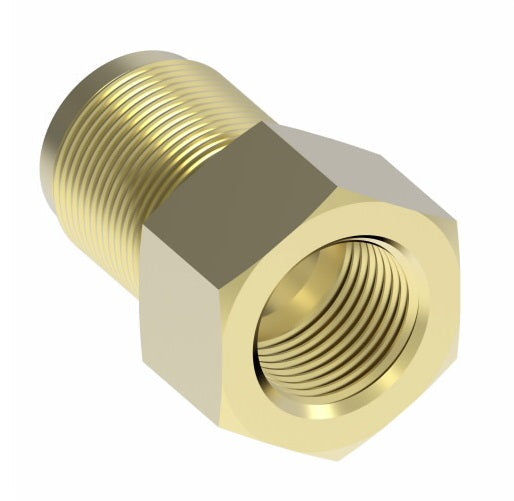

7732 by Danfoss | Hydraulic Brake Dual Master Cylinder Adapter | 7/16-20 Inverted Male x 1/4" Inverted Female | Brass

7732 by Danfoss | Hydraulic Brake Dual Master Cylinder Adapter | 7/16-20 Inverted Male x 1/4" Inverted Female | Brass

Name: 7732 by Danfoss | Hydraulic Brake Dual Master Cylinder Adapter | 7/16-20 Inverted Male x 1/4" Inverted Female | Brass
Brand: Danfoss/Eaton
SKU: 7732 Danfoss
Price: 8.23 USD
Availability: InStock

$8.23 - $8.23

$8.23

$8.23 - $8.23

$8.23

Aeroquip® by Danfoss
Hydraulic Brake Dual Master Cylinder Adapter - Straight

Adapters can be used to adapt standard steel brake lines to the different size ports used in dual master cylinders.

Quantity

Specifications for Variant SKU: 7732 Danfoss
Shape (Orientation):	Straight
Material(s):	Brass

Note:
The tube O.D. is the outside diameter of the steel brake line. Thread size can be determined by measuring with a U.S. or Metric screw pitch gauge.

Brass Part Number	Inverted Male Thread	Inverted Female Thread
7911	3/16" (9/16-18)	3/16"
7913	3/16" (9/16-18)	3/16" (1/2-20)
7828	3/16"	1/4"
7818	1/4"	3/16"
7732*	7/16-20	1/4"
7908	1/4" (9/16-18)	1/4"
7917	1/4"	5/16" **
7817*	5/16"	3/16"
7909	5/16"	3/16"
7912	5/16"	3/16" (9/16-18)
7727*	5/16"	1/4"
7829	5/16"	1/4"
1074*	5/16"	5/16"
7771	3/8" NPTF	5/16"

** Seat may be used for 3/16", 1/4", 5/16" Tube Connection with 1/2-20 Thread.
* Seals On Hex Face (E)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
