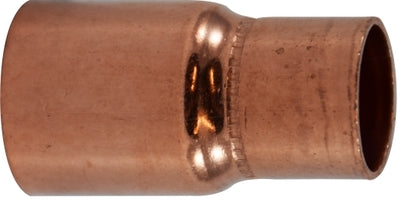

77352 (77-352) by Midland | Copper Fitting | Fitting Reducer | FTG x C | 1" ID x 1/2" ID | Straight

Save $0.92

$5.88

$5.88 - $5.88

$5.88

$4.96

$4.96 - $4.96

$4.96

Midland Industries
Copper Fitting - Wrot Solder Joint - Fitting Reducer - FTG x C

Inventory @ Manufacturers Warehouse: 17 Units

Quantity

Specifications for Variant SKU: 77352 Midland
Shape (Orientation):	Straight
Material(s):	Copper
Applicable Specs & Approvals:	NSF 61, ASTM B 88, ASTM B 306, ASTM A 306

Features:
Temp range 32° to 200°F Pressure @100°F: 1/8-1 : 500 PSI 1-1/4-2 : 400 PSI 2-1/2 - 3: 300 PSI
Specifications:
NSF - 61 Certified Alloy C12200
Symbol Of Joint Ends:
C = Solder joint fitting end made to receive copper tube diameter Ftg. = Solder joint fitting end made to copper tube diameter F = Internal ANSI Standard Taper Pipe Thread-Female M = External ANSI Standard Taper Pipe Thread-Male Threaded ends ANSI/ ASME B1. Solder ends ASTM B88

The Above Conforms To ASTM B 88 & ASTM B 306, A 306.

Crossover Series:
WC-403	600-2


Nominal Size	Joint Ends										Metal Thickness T (in)	Inside Diameter O (in)
	Male End					Female End
	Outside Diameter A (in)	Average Tolerance (mm)	Actual MIN (in)	O.D. MAX (in)		Inside Diameter F (in)	Average Tolerance (mm)	Actual MIN (in)	O.D. MAX (in)
1/8"	2/8"	0.03mm	2/8"	2/8"	3/8"	2/8"	0.03mm	2/8"	2/8"	3/8"	0	2/8"
1/4"	3/8"	0.03mm	3/8"	3/8"	3/8"	3/8"	0.03mm	3/8"	3/8"	3/8"	0	2/8"
3/8"	4/8"	0.03mm	4/8"	4/8"	3/8"	4/8"	0.03mm	4/8"	4/8"	3/8"	0	3/8"
1/2"	5/8"	0.03mm	5/8"	5/8"	4/8"	5/8"	0.03mm	5/8"	5/8"	3/8"	0	4/8"
5/8"	6/8"	0.03mm	6/8"	6/8"	5/8"	6/8"	0.03mm	6/8"	6/8"	5/8"	0	4/8"
3/4"	7/8"	0.03mm	7/8"	7/8"	6/8"	7/8"	0.03mm	7/8"	7/8"	5/8"	0	5/8"

Part Number	Nominal (ID)	Approx. Weight (Lbs.)	IND #
77292 (77-292)	3/8" x 1/8"	0.01	W 01314
77291 (77-291)	3/8" x 1/4"	0.02	W 01312
77294 (77-294)	1/2" x 1/4"	0.03	W 01317
77293 (77-293)	1/2" x 3/8"	0.03	W 01315
77295 (77-295)	5/8" x 1/2"	0.03	W 01320
77298 (77-298)	3/4" x 3/8"	0.05	W 01327
77297 (77-297)	3/4" x 1/2"	0.06	W 01326
77296 (77-296)	3/4" x 5/8"	0.08	W 01325
77352 (77-352)	1" x 1/2"	0.10	W 01265
77300 (77-300)	1" x 3/4"	0.11	W 01337
77355 (77-355)	1-1/4" x 3/4"	0.15	W 01345
77354 (77-354)	1-1/4" x 1"	0.17	W 01343
77360 (77-360)	1-1/2" x 1/2"	0.21	W 01355
77359 (77-359)	1-1/2" x 3/4"	0.21	W 01353
77358 (77-358)	1-1/2" x 1"	0.22	W 01351
77357 (77-357)	1-1/2" x 1-1/4"	0.21	W 01350
77365 (77-365)	2" x 1/2"	0.44	W 01364
77363 (77-363)	2" x 1"	0.40	W 01360
77361 (77-361)	2" x 1-1/2"	0.39	W 01358

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
