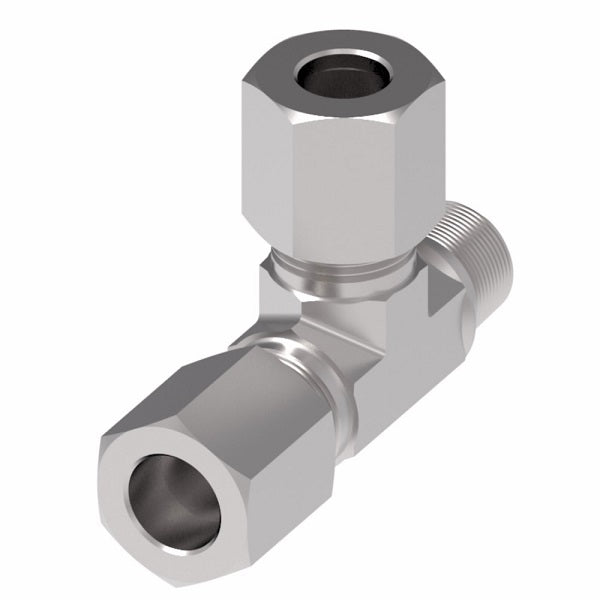

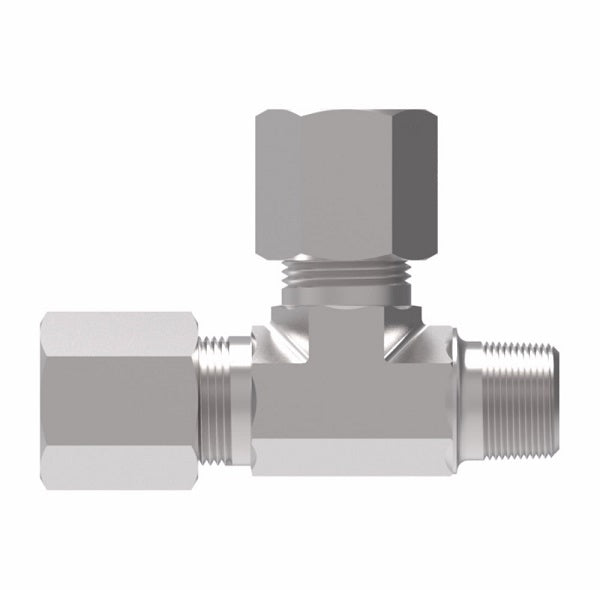

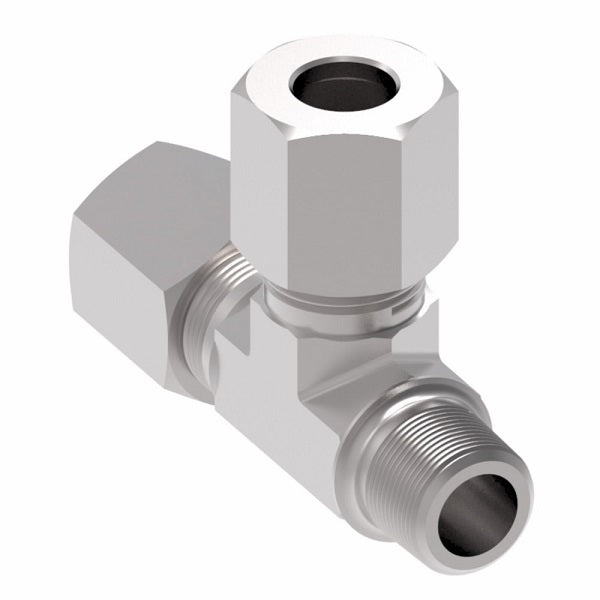

7755X6 Ermeto by Danfoss | 7000 Series | Male NPTF Run/Tube Tee | 3/8" Tube OD x 1/4" Male NPTF x 3/8" Tube OD | Steel
7755X6 Ermeto by Danfoss | 7000 Series | Male NPTF Run/Tube Tee | 3/8" Tube OD x 1/4" Male NPTF x 3/8" Tube OD | Steel
7755X6 Ermeto by Danfoss | 7000 Series | Male NPTF Run/Tube Tee | 3/8" Tube OD x 1/4" Male NPTF x 3/8" Tube OD | Steel
7755X6 Ermeto by Danfoss | 7000 Series | Male NPTF Run/Tube Tee | 3/8" Tube OD x 1/4" Male NPTF x 3/8" Tube OD | Steel

7755X6 Ermeto by Danfoss | 7000 Series | Male NPTF Run/Tube Tee | 3/8" Tube OD x 1/4" Male NPTF x 3/8" Tube OD | Steel

$17.64 - $17.64
$17.64
$17.64 - $17.64
$17.64

Ermeto by Danfoss
Male NPTF Run/Tube Tee
Tube x Male NPTF x Tube

Ermeto Fittings (7000 Series) are especially designed for making leak-proof tube connections. This Fitting will effectively withstand high pressure, severe vibration and extreme temperature. No special tools are needed for assembly. Simply cut tube square, preset sleeve on tubing and assemble.
Specifications for Variant SKU: 7755X6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Tube Compression, 1/4in Male NPTF, 3/8in Tube Compression, Some Ends Match
Material(s): Steel
Specifications:
  • Ref. SAE No. 080424
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Male Pipe Thread D D1 M N Across
Flats
7755X4 B7755X4 1/4" 1/8" 0.203" 0.188" 0.89" 0.78" 7/16"
7755X4X4X4 B7755X4X4X4 1/4" 1/4" 0.203" 0.281" 1.03" 1.09" 9/16"
7755X6 B7755X6 3/8" 1/4" 0.281" 0.281" 1.05" 1.09" 9/16"
7755X8 B7755X8 1/2" 3/8 0.422" 0.422" 1.25" 1.22" 3/4"
7755X8X8X8 B7755X8X8X8 1/2" 1/2" 0.422" 0.531" 1.35" 1.47" 7/8"
7755X10 B7755X10 5/8" 1/2" 0.500" 0.531" 1.42" 1.47" 7/8"
7755X12 B7755X12 3/4" 3/4 0.656" 0.719" 1.58" 1.59" 1-1/16"
7755X16 B7755X16 1" 1" 0.875" 0.938" 1.73" 1.97" 1-5/16"
