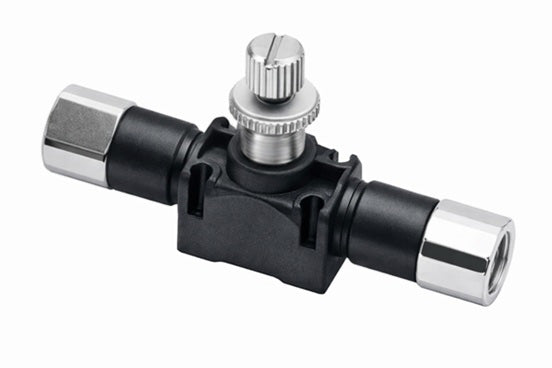

7775 11 11 by Parker | Legris Threaded In-Line Flow Control | 1/8" Female NPT Thread x 1/8" Female NPT Thread | 13 mm Hex | 2.70" Length | Straight | Nylon | Pack of 5

7775 11 11 by Parker | Legris Threaded In-Line Flow Control | 1/8" Female NPT Thread x 1/8" Female NPT Thread | 13 mm Hex | 2.70" Length | Straight | Nylon | Pack of 5

Save $129.20 Save $129.20
$323.00
$323.00 - $323.00
$323.00
$193.80
$193.80 - $193.80
$193.80

by Parker Hannifin
In-Line Flow Controls:7775 - threaded in-line flow control NPT

Package Quantity: 5 Units

Specifications for Variant SKU: 7775 11 11 Parker | 5 |
Series: 7775 Series
Shape (Orientation): Straight
Material(s): Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Glass-reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass thread
  • Nitrile D-Seal
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water and Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • 30° to 158° F (-1° to 70° C)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number NPT F F1 H (min) H1 (max) J L L1 K N1 N2 ØT Oz
7775 11 11 1/8" 13 mm 8 mm 1.56" 1.75" .55" 2.70" .91" .67" .43" .67" .12" .55 Oz
7775 14 14 1/4" 16 mm 11 mm 1.73" 1.97" .69" 3.27" 1.02" .73" .49" .79" .12" 1.20 Oz
7775 18 18 3/8" 22 mm 14 mm 2.05" 2.40" .94" 3.82" 1.30" .94" .63" 1.02" .16" 4.61 Oz
7775 22 22 1/2" 24 mm 14 mm 2.26" 2.66" 1.02" 4.76" 1.38" 1.10" .79" 1.08" .16" 5.58 Oz
