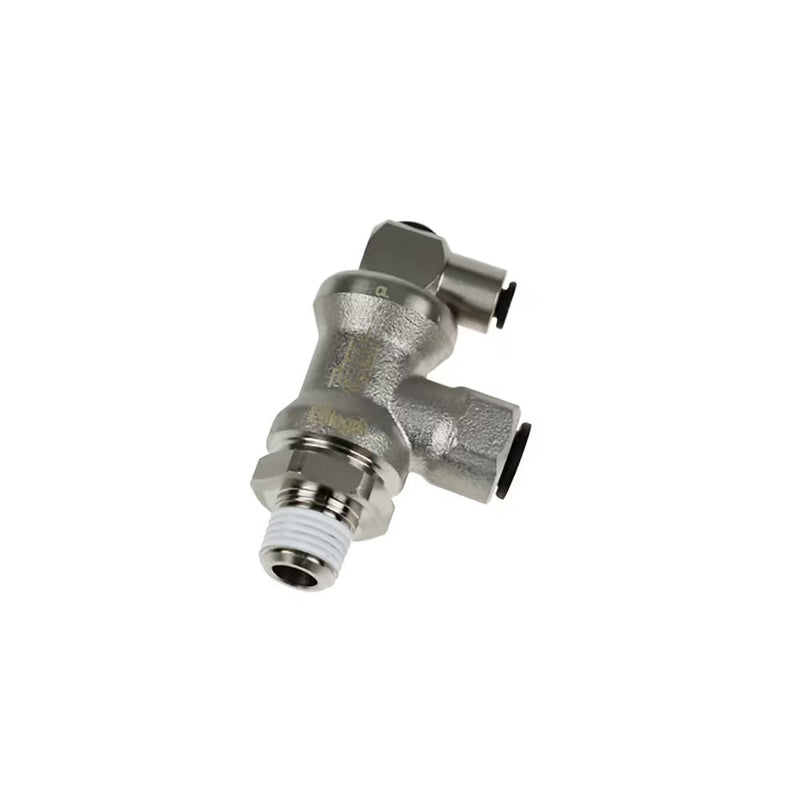

7885 56 11 by Parker | Blocking Valve | 1/4" Push-to-Connect x 1/8" Male NPT Thread x 5/32" Push-to-Connect | 21 mm Hex | 90° Elbow | Nickel-Plated Brass

7885 56 11 by Parker | Blocking Valve | 1/4" Push-to-Connect x 1/8" Male NPT Thread x 5/32" Push-to-Connect | 21 mm Hex | 90° Elbow | Nickel-Plated Brass

Save $5.84 Save $5.84
$80.32
$80.32 - $80.32
$80.32
$74.48
$74.48 - $74.48
$74.48

by Parker Hannifin
Blocking Valves:7885 - push-to-connect lock out valves tube to NPT
Specifications for Variant SKU: 7885 56 11 Parker
Series: 7885 Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Nickel-plated brass threads
  • NBR seals
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Textile
  • Machine Tools
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • -4° to 160° F (-20° to 71° C)
Leak Rate
  • <3.2SCCM
Number of Cycles
  • >10 Million at 68° F (20° C) and 1 HZ
Compatible Tubing:
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number ØD NPT (C) F G H H1 H2 J L Oz
7885 56 11 1/4" 1/8" 21 mm .95" 2.03" 1.24" .79" .67" 1.10" 6.53 Oz
7885 56 14 1/4" 1/4" 21 mm .95" 2.03" 1.24" .79" .67" 1.10" 4.77 Oz
7885 60 18 3/8" 3/8" 24 mm 1.10" 2.19" 1.14" 1.04" 1.06" 1.38" 7.59 Oz
7885 62 22 1/2" 1/2" 24 mm 1.10" 2.19" 1.14" 1.04" 1.06" 1.69" 18.00 Oz
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
