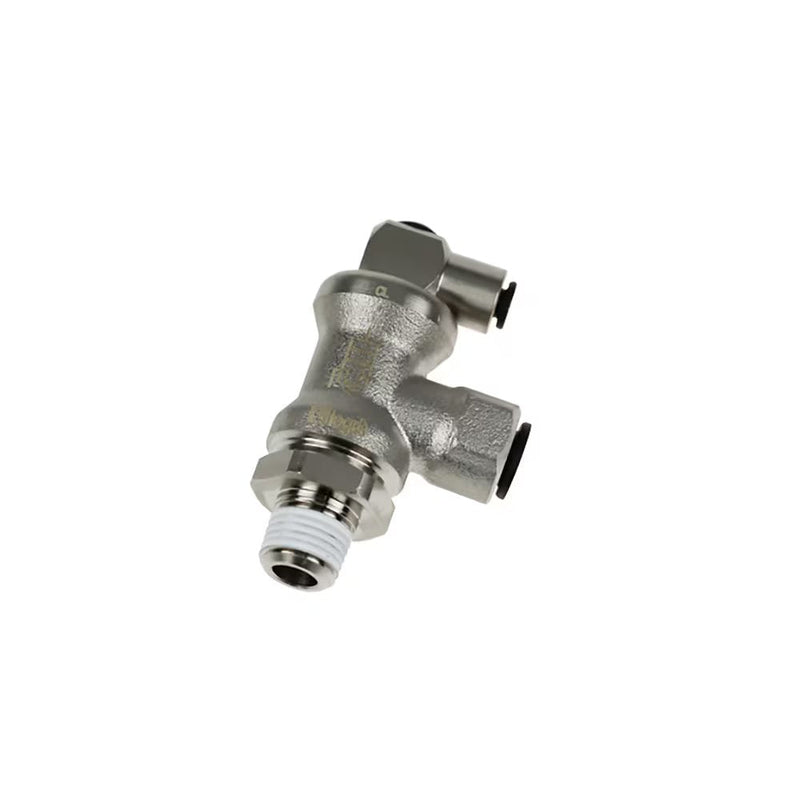

7885 62 22 by Parker | Blocking Valve | 1/2" Push-to-Connect x 1/2" Male NPT Thread x 5/32" Push-to-Connect | 24 mm Hex | 90° Elbow | Nickel-Plated Brass

7885 62 22 by Parker | Blocking Valve | 1/2" Push-to-Connect x 1/2" Male NPT Thread x 5/32" Push-to-Connect | 24 mm Hex | 90° Elbow | Nickel-Plated Brass

Save $8.80 Save $8.80
$120.99
$120.99 - $120.99
$120.99
$112.19
$112.19 - $112.19
$112.19

by Parker Hannifin
Blocking Valves:7885 - push-to-connect lock out valves tube to NPT
Specifications for Variant SKU: 7885 62 22 Parker
Series: 7885 Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Nickel-plated brass threads
  • NBR seals
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Textile
  • Machine Tools
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • -4° to 160° F (-20° to 71° C)
Leak Rate
  • <3.2SCCM
Number of Cycles
  • >10 Million at 68° F (20° C) and 1 HZ
Compatible Tubing:
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number ØD NPT (C) F G H H1 H2 J L Oz
7885 56 11 1/4" 1/8" 21 mm .95" 2.03" 1.24" .79" .67" 1.10" 6.53 Oz
7885 56 14 1/4" 1/4" 21 mm .95" 2.03" 1.24" .79" .67" 1.10" 4.77 Oz
7885 60 18 3/8" 3/8" 24 mm 1.10" 2.19" 1.14" 1.04" 1.06" 1.38" 7.59 Oz
7885 62 22 1/2" 1/2" 24 mm 1.10" 2.19" 1.14" 1.04" 1.06" 1.69" 18.00 Oz
