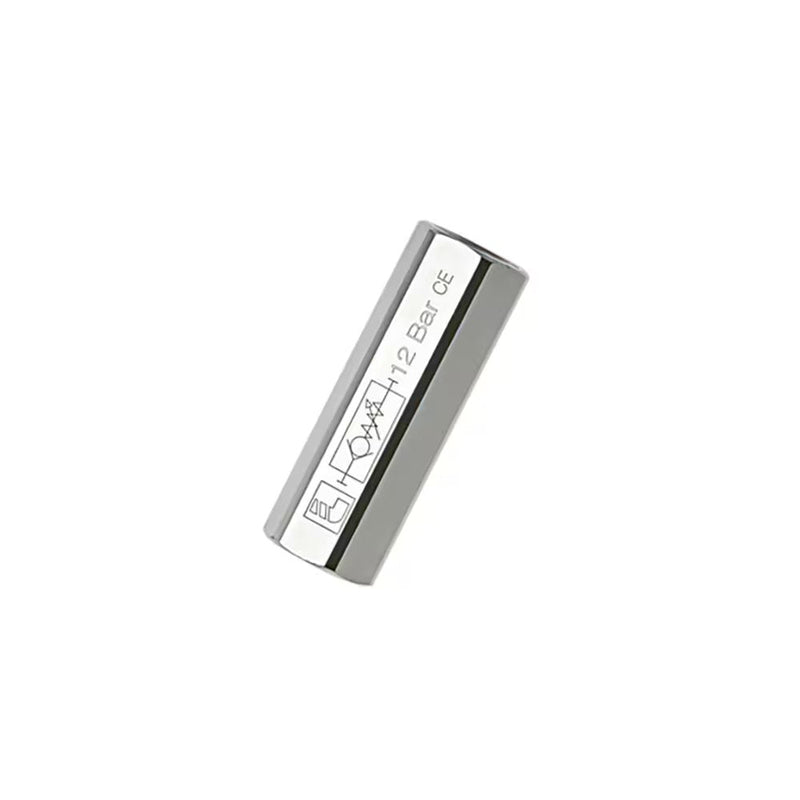

7930 13 13 by Parker | Legris Adjustable Check Valve | 1/4" Double Female BSPP Thread | 54 mm Length | Straight | Nickel-Plated Brass

7930 13 13 by Parker | Legris Adjustable Check Valve | 1/4" Double Female BSPP Thread | 54 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $17.98 Save $17.98
$661.31
$661.31 - $661.31
$661.31
$643.33
$643.33 - $643.33
$643.33

by Parker Hannifin
Adjustable Non-Return Valves:7930 Adjustable Check Valve, Double Female BSPP and Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 7930 13 13 Parker | 10 |
Series: 7930 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Stainless Steel, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Food Grade
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 12 bar
  • Working Temperature: -20°C to +80°C
  • Cracking Pressure:
    M5x0.8 - G1/8 - G1/4 -> 1 to 0.10 bar
    G3/8 -> 1 to 0.15 bar
    G1/2 -> 1 to 0.20 bar
Advantages:
  • Adjustment and locking of the non-return valve cracking pressure with two 2 Allen keys prevents the settings from being accidentally changed
  • Designed with locking nut to protect initial setting in the event of vibration or accidental handling
  • Developed for the food process industry (FDA compliance) and smooth external profile to facilitate cleaning in situ
Regulations:
  • RoHS
  • REACH
  • FDA : 21CFR
Component Materials:
  • Body: FDA chemical nickel-plated brass
  • Seat Seal: NBR
  • Non-Return Valve: Chemical nickel-plated brass
  • Spring: Stainless Steel
  • Locking nut: Brass
  • Seals: FKM
  • Adjustment: Brass
  • Adapter: FDA chemical nickel-plated brass
Part Number C E E1 F F1 F2 L Kg
7930 13 13 1/4" 10 mm 7.5 mm 16 mm 6 mm 8 mm 54 mm .073 Kg
