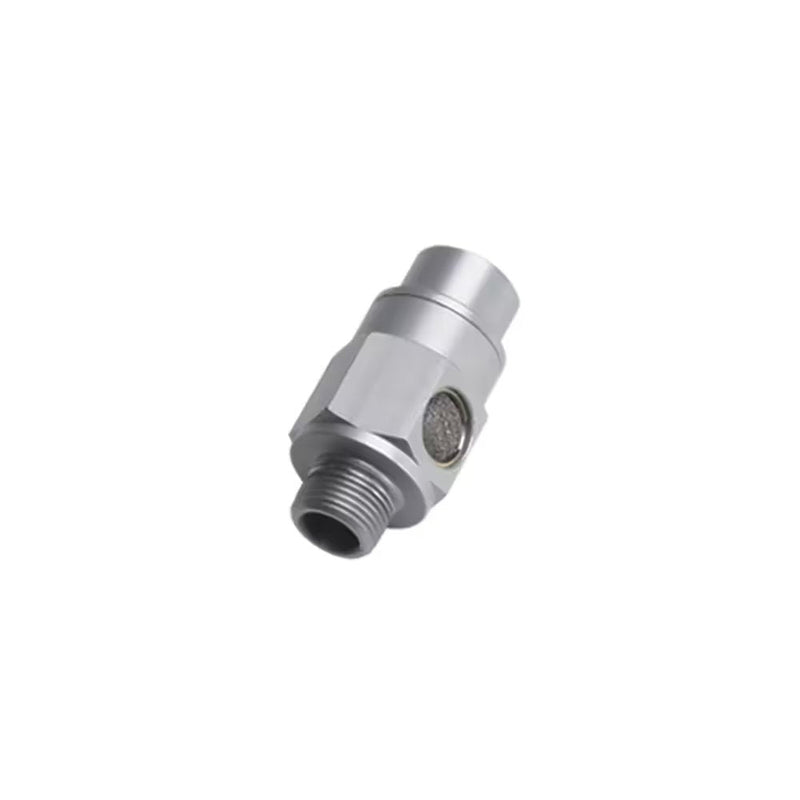

7971 21 21 by Parker | Legris Quick Exhaust Valve | 1/2" Female BSPP Thread x 1/2" Male BSPT Thread | 34 mm Hex | Straight | Aluminum

7971 21 21 by Parker | Legris Quick Exhaust Valve | 1/2" Female BSPP Thread x 1/2" Male BSPT Thread | 34 mm Hex | Straight | Aluminum

Save $6.57 Save $6.57
$90.40
$90.40 - $90.40
$90.40
$83.83
$83.83 - $83.83
$83.83

by Parker Hannifin
Metal Quick Exhaust Valves:7971 Elbow Quick Exhaust Valve, Male BSPT/Female BSPP Thread
Specifications for Variant SKU: 7971 21 21 Parker
Series: 7971 Series
Shape (Orientation): Straight
Material(s): Polyurethane Elastomer, Aluminum, Stainless Steel
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure:
    7970: 0.7 to 10 bar
    7971 and 7899: 2 to 10 bar
  • Working Temperature:
    7970: -20°C to +70°C
    7971: -10°C to +70°C
    7899:
    Threads G1/8 and G1/4: -10°C to +120°C
    Threads G1/8 and G1/4: -20°C to +80°C
Advantages:
  • Cycle time reduction: increased return speed
  • Exhaust silencer integrated and 360° orientation available on some versions
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Integrated silencer: Stainless Steel (Model 7971)
  • Lip Seals:
    7970-7971: Polyurethane elastomer
    7899: - G1/8 and G1/4 FKM
    - G3/8 and G1, Polyurethane
  • Body:
    Model 7970: Nickel-Plated Brass
    Model 7971: Anodized Aluminum
    Model 7899: Stainless Steel
Part Number C C1 F H Kg
7971 13 13 1/4" 1/4" 18 mm 32.5 mm .013 Kg
7971 17 17 3/8" 3/8" 27 mm 45 mm .048 Kg
7971 21 21 1/2" 1/2" 34 mm 52 mm .086 Kg
