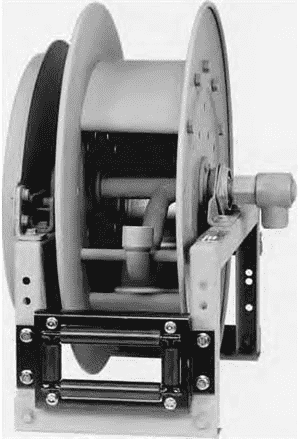

800 Hannay Spring Rewind Reel (816-25-26-10.5B)

816-25-26-10.5B by Hannay | #43-40 | 800 Series | Spring Rewind Reel

Save $644.00 Save $644.00
$1,610.00
$1,610.00 - $1,610.00
$1,610.00
$966.00
$966.00 - $966.00
$966.00



800 Spring Rewind Reels To handle 3/4" through 1" I.D. hose.
Specifications for Variant SKU: 816-25-26-10.5B Hannay
Series: 800 Series
Applications:
  • Fuel Dispensing
  • Waste Oil Evacuation
  • Air/Water
Features:
  • Rollformed channel frame for heavy-duty applications.
  • Non sparking ratchet assembly.
  • Declutching arbor to prevent damage from reverse winding.
  • Standard inlet 90 deg. balanced pressure swivel joint 1" female NPT threads.
  • Standard outlet 1" female NPT threads.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -40 deg. F to +250 deg. F (-40 deg. C to +121 deg. C).
  • 4-way roller assembly.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 3/4" 1"
O.D. (in) 1-9/32" 1-9/16" A B C D E F G H X Y
818-23-24-10.5J 50' length 25' length 87 lbs. 11.25" 6" 10.5" 23.25" 24.38" 15.5" 23.88" 12.5" 6.5" 20"
816-25-26-10.5B 60' length 35' length 96 lbs. 9.25" 4" 10.5" 25" 26.12" 13.5" 25.88" 13.5" 4.5" 21.75"
818-25-26-10.5B 70' length 50' length 102 lbs. 11.25" 6" 10.5" 25" 26.12" 15.5" 25.88" 13.5" 6.5" 21.75"
820-25-26-10.5A 85' length 75' length 131 lbs. 13.25" 8" 10.5" 25" 27" 18.25" 25.88" 13.5" 8.5" 21.75"
820-30-31-10.5A N/A 100' length 137 lbs. 13.25" 8" 10.5" 28.5" 30.5" 18.25" 31.38" 17" 8.5" 25.25"
820-30-31-15.5A 100' length N/A 145 lbs. 13.25" 8" 15.5" 28.5" 30.5" 18.25" 31.38" 17" 8.5" 25.25"
