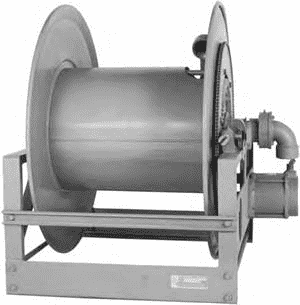

8000 Hannay Electric Powered Rewind Reel (EP-8238-39-40) 12 Volt DC

EP-8238-39-40-15.5 by Hannay | 8000 Series | Electric Powered Rewind Reel | 12 Volt DC

Save $1,913.33 Save $1,913.33
$4,783.33
$4,783.33 - $4,783.33
$4,783.33
$2,870.00
$2,870.00 - $2,870.00
$2,870.00



8000 Electric Powered Rewind Reels To handle single 1-1/2" or 2" I.D. hose.
Specifications for Variant SKU: EP-8238-39-40-15.5 Hannay
Series: 8000 Series
Applications:
  • Bulk Transfer
  • Chemical Transfer
  • General Dispensing
  • Suction/Discharge
Features:
  • Heavy-duty reel designed for longer lengths and larger diameters of hose through 2" I.D.
  • Chain and sprocket drive powered by an electric motor.
  • Power rewind reels feature a comet brake.
  • Standard inlet 90 deg. ball bearing swivel joint 2" female NPT threads.
  • Standard outlet flanged riser 2" female NPT threads
  • Standard inlet, outlet riser and hub assembly are steel.
  • Operate at pressures to 600 psi (41 bar).
  • Temperatures from -60 deg. F to +175 deg. F (-51 deg. C to +79 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1-1/2" 2"
O.D. (in) 2-1/16" 2-9/16" A B D E F Crank F Power G H X Y
EP-8234-26-27 80' lengths 60' lengths 160 lbs. 26.25" 20" 27" 25.75" 33.75" 34.75" 26.62" 13.75" 18.75" 23.25"
EP-8238-26-27 100' lengths 75' lengths 185 lbs. 30.25" 24" 27" 25.75" 37.75" 38.75" 26.62" 13.75" 22.75" 23.25"
EP-8246-26-27 145' lengths 100' lengths 236 lbs. 38.25" 32" 27" 25.75" 45.75" 46.75" 26.62" 13.75" 30.75" 23.25"
EP-8226-33-34 85' lengths 60' lengths 120 lbs. 17.75" 11.5" 31.5" 31.75" 25.25" 26.25" 33.38" 17.75" 10.25" 27.75"
EP-8234-33-34 150' lengths 115' lengths 173 lbs. 26.25" 20" 31.5" 31.75" 33.75" 34.75" 33.38" 17.75" 18.75" 27.75"
EP-8238-39-40 340' lengths 225' lengths 258 lbs. 30.25" 24" 40" 39" 37.75" 38.75" 39.88" 20.38" 22.75" 37"

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
