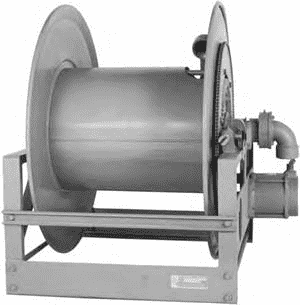

8000 Hannay Manual Bevel Gear Crank Rewind Reel (8234-33-34)

8234-33-34 by Hannay | 8000 Series | Manual Bevel Gear Crank Rewind Reel

Save $254.08 Save $254.08
$1,654.08
$1,654.08 - $1,654.08
$1,654.08
$1,400.00
$1,400.00 - $1,400.00
$1,400.00



8000 Manual Bevel Gear Crank Rewind Reels To handle single 1-1/2" or 2" I.D. hose.
Specifications for Variant SKU: 8234-33-34 Hannay
Series: 8000 Series
Applications:
  • Bulk Transfer
  • Chemical Transfer
  • General Dispensing
  • Suction/Discharge
Features:
  • Heavy-duty reel designed for longer lengths and larger diameters of hose through 2" I.D.
  • Gear-driven crank rewind reels supplied with a pinion brake.
  • Standard inlet 90 deg. ball bearing swivel joint 2" female NPT threads.
  • Standard outlet flanged riser 2" female NPT threads
  • Standard inlet, outlet riser and hub assembly are steel.
  • Operate at pressures to 600 psi (41 bar).
  • Temperatures from -60 deg. F to +175 deg. F (-51 deg. C to +79 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1-1/2" 2"
O.D. (in) 2-1/16" 2-9/16" A B D E F Crank F Power G H X Y
8234-26-27 80' lengths 60' lengths 120 lbs. 26.25" 20" 27" 25.75" 33.75" 34.75" 26.62" 13.75" 18.75" 23.25"
8238-26-27 100' lengths 75' lengths 145 lbs. 30.25" 24" 27" 25.75" 37.75" 38.75" 26.62" 13.75" 22.75" 23.25"
8246-26-27 145' lengths 100' lengths 196 lbs. 38.25" 32" 27" 25.75" 45.75" 46.75" 26.62" 13.75" 30.75" 23.25"
8226-33-34 85' lengths 60' lengths 80 lbs. 17.75" 11.5" 31.5" 31.75" 25.25" 26.25" 33.38" 17.75" 10.25" 27.75"
8234-33-34 150' lengths 115' lengths 133 lbs. 26.25" 20" 31.5" 31.75" 33.75" 34.75" 33.38" 17.75" 18.75" 27.75"
8238-39-40 340' lengths 225' lengths 218 lbs. 30.25" 24" 40" 39" 37.75" 38.75" 39.88" 20.38" 22.75" 37"
